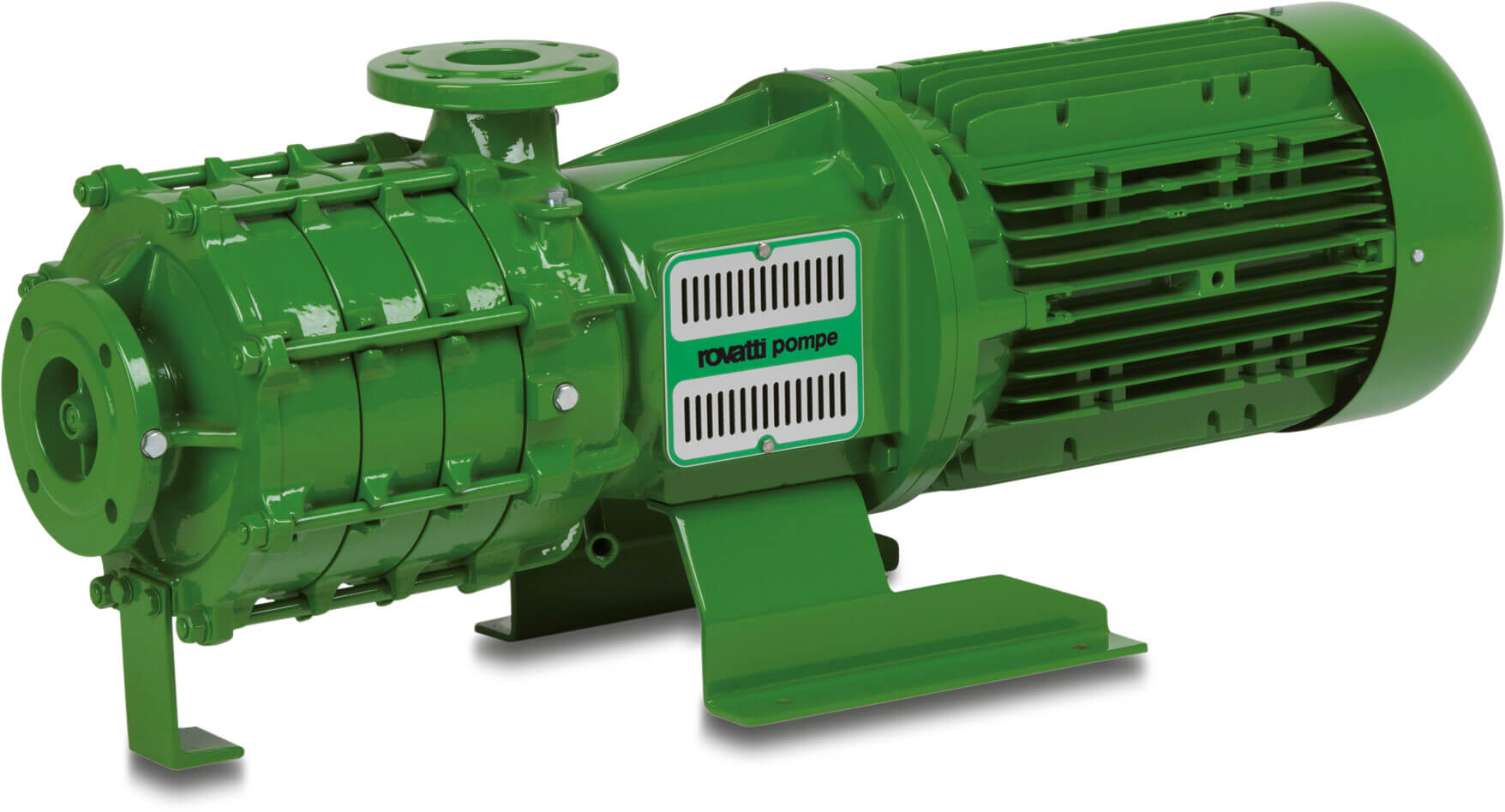

Rovatti Multi-stage centrifugal pump cast iron DN65 x DN50 DIN flange 400VAC green type ME 15KV65-22/4

Product number: 7024348
Select your item below or order directly via full product table
Power
Type
All prices shown are gross prices. Please log in or contact sales for custom, discounted pricing.
Price excl. VAT £4,848.00 / 1 pcs
£4,848.00 / pcs
Price incl. VAT £5,817.60 / 1 pcs
£5,817.60 / pcs
Available at supplier, please contact us
Available on request in Veghel, NL, please call sales team
pcs
Box qty:
1 pcs
MSQ:
1 pcs

Fast, free shipping on orders over £350*

Your trade partner in water technology

8.9/10 Read reviews

Frequently bought together

Greener choice Greener choice
Pressure pipe PE40 16 mm x 1,5 mm plain 5bar black 100m
0700000
Pressure pipe PE40 16 mm x 1,5 mm plain 5bar black 100m

£0.59*
Profec Hose tail adaptor brass 1/4" x 10 mm male thread x hose tail 30bar
0411750
Profec Hose tail adaptor brass 1/4" x 10 mm male thread x hose tail 30bar

£0.72*
Torsino Hose PVC 12.5 mm x 17 mm 10bar yellow/blue 50m type Torsino Plus
7028074
Torsino Hose PVC 12.5 mm x 17 mm 10bar yellow/blue 50m type Torsino Plus

£1.28*
Profec Nr. 130 T-piece 90° cast iron galvanised 1/4" female thread 25bar DVGW
1013002
Profec Nr. 130 T-piece 90° cast iron galvanised 1/4" female thread 25bar DVGW

£2.27*
Profec Elbow 90° PVC-U 2" imperial glue socket 16bar grey WRAS
7036324
Profec Elbow 90° PVC-U 2" imperial glue socket 16bar grey WRAS

£3.23*
Adaptor socket PP 51 mm x 2" compression x female thread 10bar black/orange type Layflat
7029288
Adaptor socket PP 51 mm x 2" compression x female thread 10bar black/orange type Layflat

£4.28*
Profec Quick coupler brass 13 mm hose tail CD 40 12bar
0420012
Profec Quick coupler brass 13 mm hose tail CD 40 12bar

£2.67*
Jason Elbow 90° PP 16 mm compression 16bar black/blue DVGW/KIWA/WRAS/SVGW
0706516
Jason Elbow 90° PP 16 mm compression 16bar black/blue DVGW/KIWA/WRAS/SVGW

£1.37*
Socket PP 16 mm lock 4bar black
7034851
Socket PP 16 mm lock 4bar black

£0.88*
Profec Ball valve brass nickel plated 1/4" female thread 25bar type 100 VA
0403030
Profec Ball valve brass nickel plated 1/4" female thread 25bar type 100 VA

£4.38*

Technical details

  • Max flow rate
    36 m³/h
  • Output Power
    15 HP
  • MWC
    134
  • Press
    50
  • Material impeller 1
    brass
  • IP value
    IP55
  • Impellers
    4
  • Shaft
    steel
  • Colour
    green
  • Suction
    65
  • Frequency
    50 Hz
  • Voltage
    400VAC
  • Connection
    DIN flange
  • Material
    cast iron
  • EAN
    4019305682336
  • Part number
    7024348
  • Manufacturer
    Rovatti

Dimensions

  • Cb-2
    340 mm
  • Cr-1
    190 mm
  • Lb
    655 mm
  • Cl-1
    190 mm
  • ØDi-2
    50 mm
  • ØDi-1
    65 mm
  • G-1
    225 mm
  • L
    1165 mm
  • G-2
    225 mm
  • O
    18 mm
  • Cb-1
    100 mm
Graph
Technical drawing
Pump table

Variants

Product number:
Size
Power
Type
Price
Box qty
MSQ
Stock
7024346
DN65 x DN50
7.5 kW
ME 10KV65-22/3
£4,848.00
1
1
7024347
DN65 x DN50
11 kW
ME 12KV65-22/3
£4,848.00
1
1
7024348
DN65 x DN50
11 kW
ME 15KV65-22/4
£4,848.00
1
1
7024349
DN65 x DN50
7.5 kW
ME 10KV65-32/2
£4,848.00
1
1
7024350
DN65 x DN50
11 kW
ME 12KV65-32/3
£4,848.00
1
1
7024351
DN65 x DN50
11 kW
ME 15KV65-32/3
£4,848.00
1
1
7024352
DN65 x DN50
11 kW
ME 15KV65-42/2
£4,848.00
1
1
7024353
DN65 x DN50
15 kW
ME 20KV65-42/3
£4,848.00
1
1
7024354
DN65 x DN50
18.5 kW
ME 25KV65-42/3
£4,848.00
1
1
