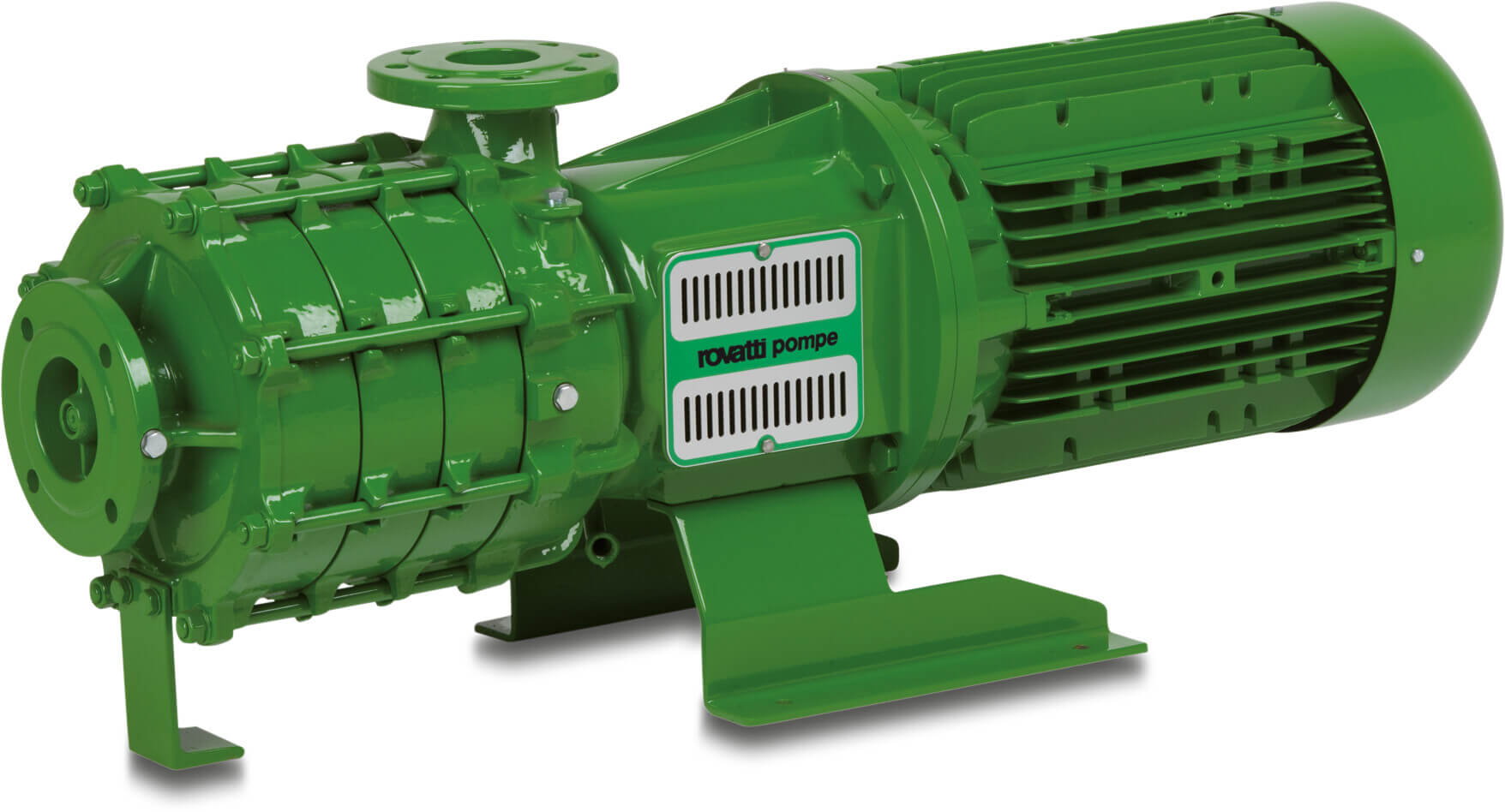

Rovatti Multi-stage centrifugal pump cast iron DN65 x DN50 DIN flange 27bar 19,6A 400VAC green type ME 12K65-32/3

Product number: 7024384

Manuals & drawings

Select your item below or order directly via full product table
Type
All prices shown are gross prices. Please log in or contact sales for custom, discounted pricing.
Price excl. VAT £5,878.20 / 1 pcs
£5,878.20 / pcs
Price incl. VAT £7,053.84 / 1 pcs
£7,053.84 / pcs
Available at supplier, please contact us - available on request, please contact sales team
pcs
Box qty:
1 pcs
MSQ:
1 pcs

Fast, free shipping on orders over £350*

Your trade partner in water technology

8.9/10 Read reviews

Frequently bought together

Greener choice Greener choice
0700000
Pressure pipe PE40 16 mm x 1,5 mm plain 5bar black 100m

£0.59
0411750
Profec Hose tail adaptor brass 1/4" x 10 mm male thread x hose tail 30bar

£0.72
Torsino Hose PVC 12.5 mm x 17 mm 10bar yellow/blue 50m type Torsino Plus
7028074
Torsino Hose PVC 12.5 mm x 17 mm 10bar yellow/blue 50m type Torsino Plus

£1.28
1013002
Profec Nr. 130 T-piece 90° cast iron galvanised 1/4" female thread 25bar DVGW

£2.27
Profec Elbow 90° PVC-U 2" imperial glue socket 16bar grey WRAS
7036324
Profec Elbow 90° PVC-U 2" imperial glue socket 16bar grey WRAS

£3.23
Adaptor socket PP 51 mm x 2" compression x female thread 10bar black/orange type Layflat
7029288
Adaptor socket PP 51 mm x 2" compression x female thread 10bar black/orange type Layflat

£4.28
0420012
Profec Quick coupler brass 13 mm hose tail CD 40 12bar

£2.67
0706516
Jason Elbow 90° PP 16 mm compression 16bar black/blue DVGW/KIWA/WRAS/SVGW

£1.37
Socket PP 16 mm lock 4bar black
7034851
Socket PP 16 mm lock 4bar black

£0.88
Profec Ball valve brass nickel plated 1/4" female thread 25bar type 100 VA
0403030
Profec Ball valve brass nickel plated 1/4" female thread 25bar type 100 VA

£4.38

Technical details

  • Output Power
    15 HP
  • Press
    50
  • Material impeller 1
    cast iron
  • IP value
    IP55
  • Max flow rate
    45 m³/h
  • MWC
    93
  • Colour
    green
  • Suction
    65
  • Power
    11 kW
  • Frequency
    50 Hz
  • Voltage
    400VAC
  • Impellers
    3
  • Connection
    DIN flange
  • Material
    cast iron
  • EAN
    4019305682695
  • Part number
    7024384
  • Manufacturer
    Rovatti

Dimensions

  • H
    465 mm
  • G-1
    330 mm
  • Lb
    688 mm
  • Mc
    280 mm
  • Cr-1
    250 mm
  • O
    14 mm
  • L
    1075 mm
  • ØDi-2
    50 mm
  • Cb-1
    275 mm
  • ØDi-1
    65 mm
  • Mr
    408 mm
  • W-1
    380 mm

Product description

The ME (Europa) Horizontal type is a high efficiency pump.
The lattyflon stuffing-box packing is ideal for dirty water installation because opposite to the mechanical seal where sand can damage the seal, with the stuffin-box packing there will be no issuses. The stuffing-box packing needs to be adjusted accordingly with the Twinner System (2 parts) so it is always leaking in order to keep it lubricated and cool.
The ME (Europa) Horizontal pumps can also be delivered with an optional mechanical seal for clean water, please consult with us for more information.
No counter flanges are delivered with the ME (Europa) Horizaton types, for the counter flange kits please consult with us.
The ME (Europa) Horizontal type is able to supply a wide range of pressures which allows it to be used for diverse installations of medium and high pressure in irrigation with higher capacities than the compact types.
Read more Read less

Variants

Product number:
Price
Box qty
MSQ
Stock
No variants found
Adjust or clear the selected filters to see available variants.
7024380
DN65 x DN50
ME 10K65-22/3
£5,171.20
1
1
7024381
DN65 x DN50
ME 12K65-22/3
£5,656.00
1
1
7024382
DN65 x DN50
ME 15K65-22/4
£6,211.50
1
1
7024383
DN65 x DN50
ME 10K65-32/2
£4,848.00
1
1
7024384
DN65 x DN50
ME 12K65-32/3
£5,878.20
1
1
7024385
DN65 x DN50
ME 15K65-32/3
£5,878.20
1
1
7024386
DN65 x DN50
ME 15K65-42/2
£5,302.50
1
1
7024387
DN65 x DN50
ME 20K65-42/3
£6,262.00
1
1
7024388
DN65 x DN50
ME 25K65-42/3
£6,514.50
1
1
