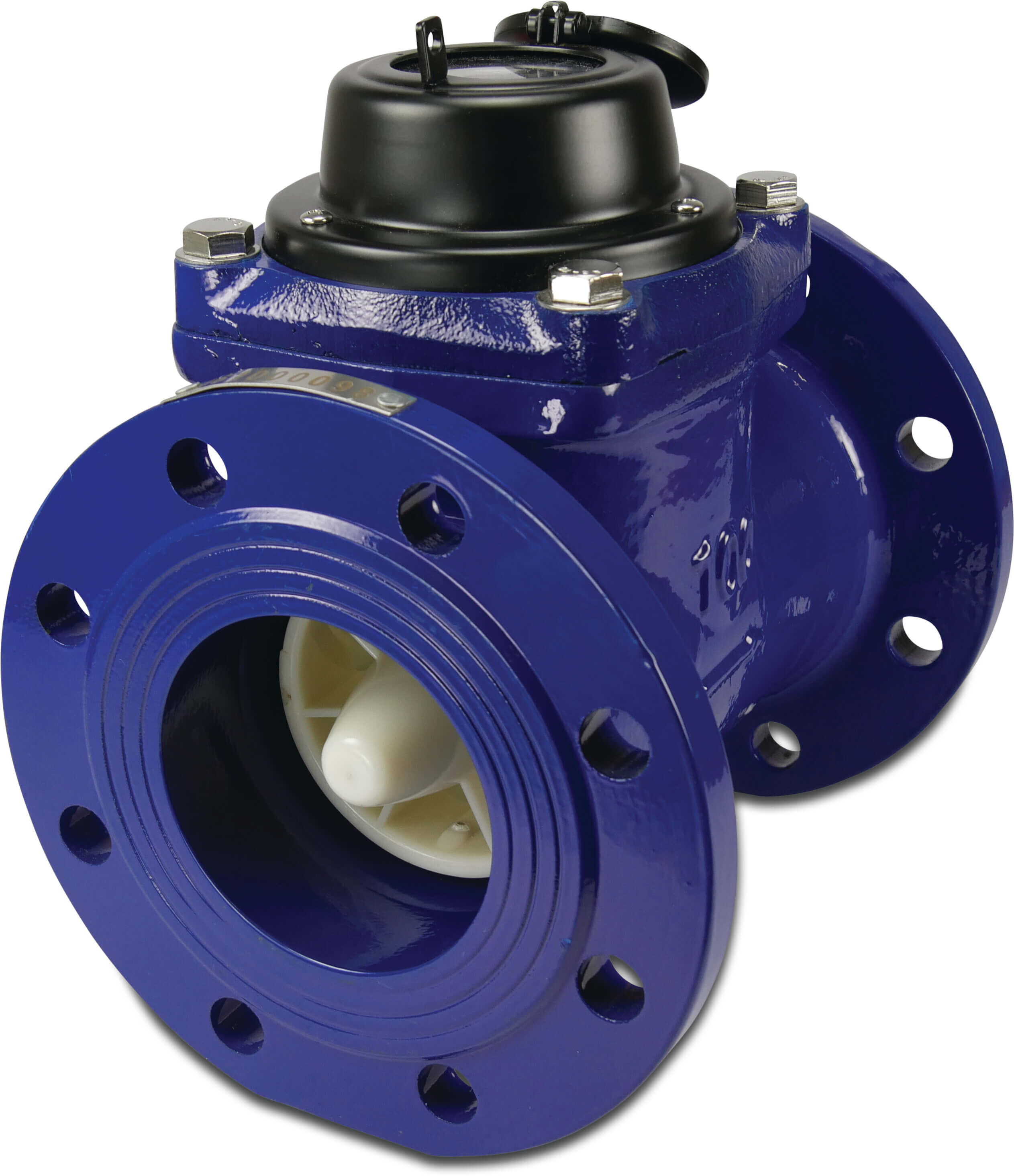

Profec Water meter cast iron DN80 DIN flange 16bar 40m³/h blue LXLC(R) type Woltman horizontal

Product number: 0892522

Manuals & drawings

Select your item below or order directly via full product table
Size
Capacity Qn
All prices shown are gross prices. Please log in or contact sales for custom, discounted pricing.
Price excl. VAT £188.71 / 1 pcs
£188.71 / pcs
Price incl. VAT (£226.45 / 1 pcs)
Out of stock, not expected before 2026-01-31
pcs
Box qty:
1 pcs
MSQ:
1 pcs
  • Fast, free shipping on orders over £350*
  • Your trade partner in water technology
  • 9.1/10 Read reviews

Fast, free shipping on orders over £350*

Your trade partner in water technology

8.9/10 Read reviews

Frequently bought together

Torsino Hose PVC 12.5 mm x 17 mm 10bar yellow/blue 50m type Torsino Plus
7028074
Torsino Hose PVC 12.5 mm x 17 mm 10bar yellow/blue 50m type Torsino Plus
Op voorraad

£1.28*
Profec Nr. 130 T-piece 90° cast iron galvanised 1/4" female thread 25bar DVGW
1013002
Profec Nr. 130 T-piece 90° cast iron galvanised 1/4" female thread 25bar DVGW
Op voorraad

£2.27*
Profec Elbow 90° PVC-U 2" imperial glue socket 16bar grey WRAS
7036324
Profec Elbow 90° PVC-U 2" imperial glue socket 16bar grey WRAS
Out of stock

£3.23*
Adaptor socket PP 51 mm x 2" compression x female thread 10bar black/orange type Layflat
7029288
Adaptor socket PP 51 mm x 2" compression x female thread 10bar black/orange type Layflat
Op voorraad

£4.28*
Greener choice Greener choice
Pressure pipe PE40 16 mm x 1,5 mm plain 5bar black 100m
0700000
Pressure pipe PE40 16 mm x 1,5 mm plain 5bar black 100m
Op voorraad

£0.59*
Profec Quick coupler brass 13 mm hose tail CD 40 12bar
0420012
Profec Quick coupler brass 13 mm hose tail CD 40 12bar
Op voorraad

£2.67*
Jason Elbow 90° PP 16 mm compression 16bar black/blue DVGW/KIWA/WRAS/SVGW
0706516
Jason Elbow 90° PP 16 mm compression 16bar black/blue DVGW/KIWA/WRAS/SVGW
Op voorraad

£1.37*
Profec Ball valve brass nickel plated 1/4" female thread 25bar type 100 VA
0403030
Profec Ball valve brass nickel plated 1/4" female thread 25bar type 100 VA
Op voorraad

£4.38*
Profec Hose tail adaptor brass 1/4" x 10 mm male thread x hose tail 30bar
0411750
Profec Hose tail adaptor brass 1/4" x 10 mm male thread x hose tail 30bar
Op voorraad

£0.72*
Quick coupler steel galvanised 1/2" male thread CD 42 10bar
0451672
Quick coupler steel galvanised 1/2" male thread CD 42 10bar
Op voorraad

£5.31*

Technical details

  • Capacity
    63 m³/h
  • Length
    225 mm
  • Diam.
    3 "
  • Type
    Woltman
  • Material flange
    cast iron
  • Model
    LXLC(R)
  • Pressure
    16 bar
  • Colour
    blue
  • Connection
    DIN flange
  • PCD
    160 mm
  • Capacity Qmax
    80 m³/h
  • Temperature range
    0,1°C - 40°C
  • Type
    horizontal
  • Material seal
    rubber reinforced with nylon
  • Material
    cast iron
  • EAN
    4019305191289
  • Part number
    0892522
  • Manufacturer
    Profec

Dimensions

  • PCD
    160 mm
  • H
    279 mm

Variants

Product number:
Size
Capacity Qn
Price
Box qty
MSQ
Stock
0892520
DN50
15 m³/h
£188.71
1
1
(17)
7021132
DN65
25 m³/h
£188.71
1
1
0892522
DN80
40 m³/h
£188.71
1
1
0892523
DN100
60 m³/h
£188.71
1
1
(44)
7021133
DN125
100 m³/h
£188.71
1
1
7021134
DN150
150 m³/h
£188.71
1
1
