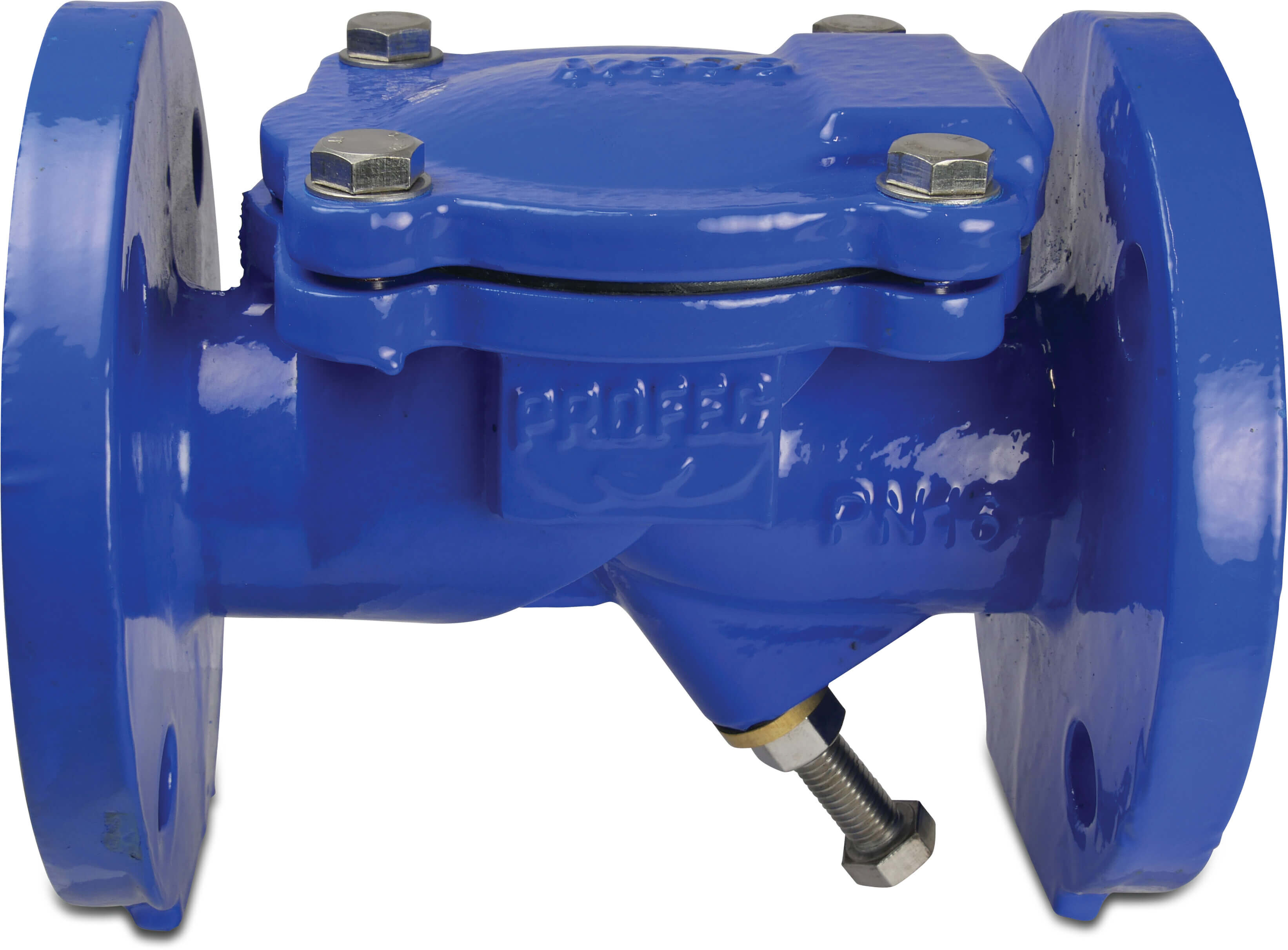

Profec Swing check valve with lifting device ductile iron (GGG40) epoxy coating DN125 DIN flange 16bar DN125 blue PN10/16

Product number: 0402638

Manuals & drawings

Select your item below or order directly via full product table
Size
All prices shown are gross prices. Please log in or contact sales for custom, discounted pricing.
Price excl. VAT £98.60 / 1 pcs
£98.60 / pcs
Price incl. VAT £118.32 / 1 pcs
£118.32 / pcs
Out of stock, not expected before 2026-01-17
Item 0402638 is out of stock and not expected before: 2026-01-17
pcs
Box qty:
32 pcs
MSQ:
1 pcs

Fast, free shipping on orders over £350*

Your trade partner in water technology

8.9/10 Read reviews

Frequently bought together

Greener choice Greener choice
Pressure pipe PE40 16 mm x 1,5 mm plain 5bar black 100m
0700000
Pressure pipe PE40 16 mm x 1,5 mm plain 5bar black 100m

£0.59*
Profec Hose tail adaptor brass 1/4" x 10 mm male thread x hose tail 30bar
0411750
Profec Hose tail adaptor brass 1/4" x 10 mm male thread x hose tail 30bar

£0.72*
Torsino Hose PVC 12.5 mm x 17 mm 10bar yellow/blue 50m type Torsino Plus
7028074
Torsino Hose PVC 12.5 mm x 17 mm 10bar yellow/blue 50m type Torsino Plus

£1.28*
Profec Nr. 130 T-piece 90° cast iron galvanised 1/4" female thread 25bar DVGW
1013002
Profec Nr. 130 T-piece 90° cast iron galvanised 1/4" female thread 25bar DVGW

£2.27*
Profec Elbow 90° PVC-U 2" imperial glue socket 16bar grey WRAS
7036324
Profec Elbow 90° PVC-U 2" imperial glue socket 16bar grey WRAS

£3.23*
Adaptor socket PP 51 mm x 2" compression x female thread 10bar black/orange type Layflat
7029288
Adaptor socket PP 51 mm x 2" compression x female thread 10bar black/orange type Layflat

£4.28*
Profec Quick coupler brass 13 mm hose tail CD 40 12bar
0420012
Profec Quick coupler brass 13 mm hose tail CD 40 12bar

£2.67*
Jason Elbow 90° PP 16 mm compression 16bar black/blue DVGW/KIWA/WRAS/SVGW
0706516
Jason Elbow 90° PP 16 mm compression 16bar black/blue DVGW/KIWA/WRAS/SVGW

£1.37*
Socket PP 16 mm lock 4bar black
7034851
Socket PP 16 mm lock 4bar black

£0.88*
Profec Ball valve brass nickel plated 1/4" female thread 25bar type 100 VA
0403030
Profec Ball valve brass nickel plated 1/4" female thread 25bar type 100 VA

£4.38*

Technical details

  • Material
    ductile iron (GGG40)
  • Holes
    8
  • Capacity
    265 m³/h
  • Material cover
    ductile iron
  • Material housing
    ductile iron (GGG40)
  • Flange
    PN10/16
  • Outer ø
    250 mm
  • Material seal
    NBR
  • Temperature range
    0°C - 80°C
  • Surface treatment
    epoxy coating
  • Colour
    blue
  • Connection
    DIN flange
  • Length
    350 mm
  • DN
    125
  • EAN
    4019305394741
  • Part number
    0402638
  • Manufacturer
    Profec

Dimensions

  • PCD
    210 mm
  • Ct-1
    125 mm
  • PCD
    210 mm
  • L
    350 mm
Technical drawing

Variants

Product number:
Size
Pressure
Price
Box qty
MSQ
Stock
0402634
DN50
16 bar
£98.60
1
1
(10)
0402635
DN65
16 bar
£98.60
32
1
0402636
DN80
16 bar
£98.60
65
1
0402637
DN100
16 bar
£98.60
40
1
0402638
DN125
16 bar
£98.60
32
1
0402639
DN150
16 bar
£98.60
15
1
0402640
DN200
16 bar
£98.60
10
1
0402641
DN250
16 bar
£98.60
3
4
0402642
DN300
16 bar
£98.60
4
1
