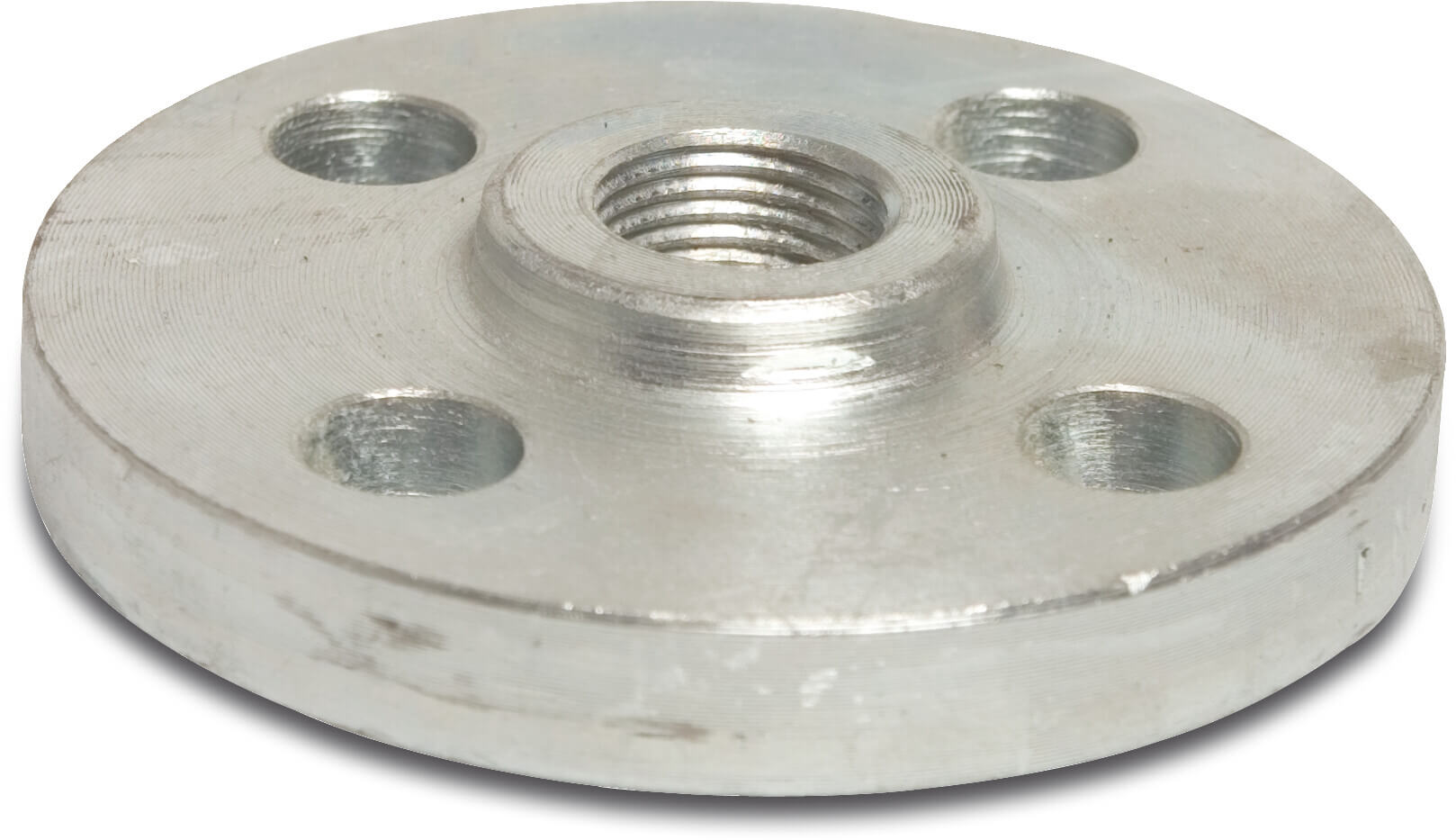

Profec Flange threaded steel zinc plated DN125 x 5" DIN flange x female thread DN125 PN10/16

Product number: 1080219

Manuals & drawings

Select your item below or order directly via full product table
Size
All prices shown are gross prices. Please log in or contact sales for custom, discounted pricing.
Price excl. VAT £12.05 / 1 pcs
£12.05 / pcs
Price incl. VAT (£14.46 / 1 pcs)
Out of stock, not expected before 2025-12-21
pcs
Box qty:
60 pcs
MSQ:
1 pcs

Frequently bought together

Greener choice Greener choice
Pressure pipe PE40 16 mm x 1,5 mm plain 5bar black 100m
Pressure pipe PE40 16 mm x 1,5 mm plain 5bar black 100m

£0.59*
Jason Elbow 90° PP 16 mm compression 16bar black/blue DVGW/KIWA/WRAS/SVGW
Jason Elbow 90° PP 16 mm compression 16bar black/blue DVGW/KIWA/WRAS/SVGW

£1.37*
Profec Quick coupler brass 13 mm hose tail CD 40 12bar
Profec Quick coupler brass 13 mm hose tail CD 40 12bar

£2.67*
Quick coupler steel galvanised 1/2" male thread CD 42 10bar
Quick coupler steel galvanised 1/2" male thread CD 42 10bar

£5.31*
Profec Ball valve brass nickel plated 1/4" female thread 25bar type 100 VA
Profec Ball valve brass nickel plated 1/4" female thread 25bar type 100 VA

£4.38*
Profec Elbow 90° PVC-U 20 mm glue socket 16bar grey KIWA
Profec Elbow 90° PVC-U 20 mm glue socket 16bar grey KIWA

£0.55*
Pressure pipe PVC-U 250 mm x 7,3 mm glue socket x plain 7,5bar grey 5m
Pressure pipe PVC-U 250 mm x 7,3 mm glue socket x plain 7,5bar grey 5m

£35.06*
Profec Hose tail adaptor brass 1/4" x 10 mm male thread x hose tail 30bar
Profec Hose tail adaptor brass 1/4" x 10 mm male thread x hose tail 30bar

£0.72*
Torsino Hose PVC 12.5 mm x 17 mm 10bar yellow/blue 50m type Torsino Plus
Torsino Hose PVC 12.5 mm x 17 mm 10bar yellow/blue 50m type Torsino Plus

£1.28*
Profec Union coupler PVC-U 16 mm glue socket 16bar grey
Profec Union coupler PVC-U 16 mm glue socket 16bar grey

£2.58*

Technical details

  • Holes
    8
  • Bolt hole
    18 mm
  • Material
    steel
  • Bolt
    M16
  • Flange
    PN10/16
  • DIN Standard
    DIN 2566
  • Outer ø
    250 mm
  • Thickness
    22 mm
  • Diameter
    139,7 mm
  • Connection
    DIN flange x female thread
  • Surface treatment
    zinc plated
  • DN
    125
  • EAN
    4019305006125
  • Part number
    1080219
  • Manufacturer
    Profec

Dimensions

  • PCD
    210 mm
  • O
    18 mm
  • ØDi-1
    5 "

Variants

Product number:
Size
Price
Box qty
MSQ
Stock
1080210
DN15 x 1/2"
£12.05
240
1
(44)
1080211
DN20 x 3/4"
£12.05
140
1
(39)
1080212
DN25 x 1"
£12.05
200
1
1080213
DN32 x 1 1/4"
£12.05
280
1
1080214
DN40 x 1 1/2"
£12.05
300
1
1080215
DN50 x 2"
£12.05
300
1
1080216
DN65 x 2 1/2"
£12.05
240
1
(184)
1080217
DN80 x 3"
£12.05
180
1
1080218
DN100 x 4"
£12.05
180
1
1080219
DN125 x 5"
£12.05
60
1
1080220
DN150 x 6"
£12.05
120
1
