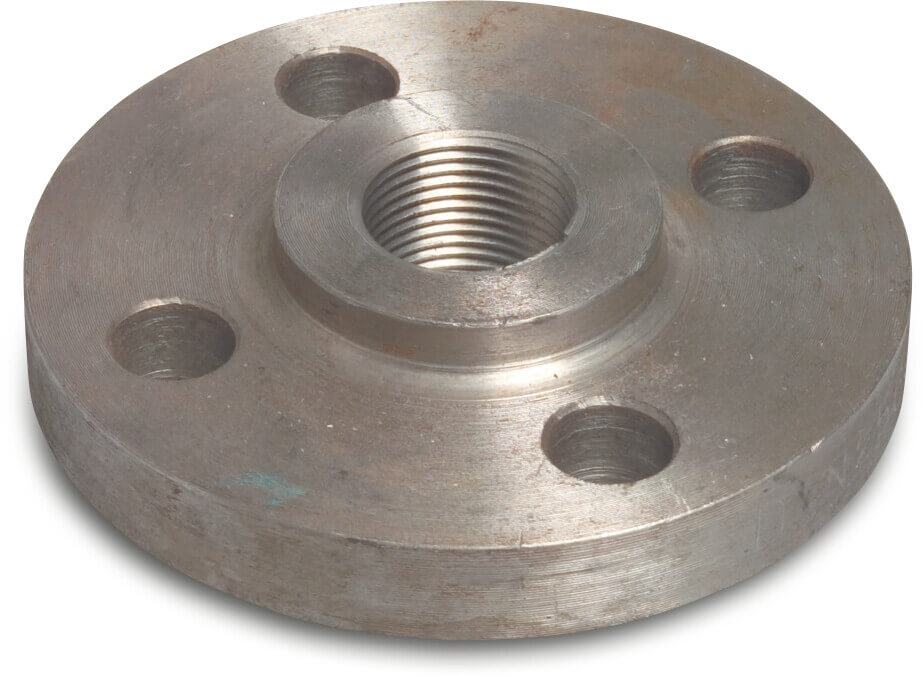

Profec Flange threaded steel DN100 x 4" DIN flange x female thread 16bar black PN10/16

Product number: 1180218

Manuals & drawings

Select your item below or order directly via full product table
Size
All prices shown are gross prices. Please log in or contact sales for custom, discounted pricing.
Price excl. VAT £14.97 / 1 pcs
£14.97 / pcs
Price incl. VAT (£17.96 / 1 pcs)
Out of stock, please contact us for availability
pcs
Box qty:
180 pcs
MSQ:
1 pcs

Frequently bought together

Greener choice Greener choice
Pressure pipe PE40 16 mm x 1,5 mm plain 5bar black 100m
Pressure pipe PE40 16 mm x 1,5 mm plain 5bar black 100m

£0.59*
Jason Elbow 90° PP 16 mm compression 16bar black/blue DVGW/KIWA/WRAS/SVGW
Jason Elbow 90° PP 16 mm compression 16bar black/blue DVGW/KIWA/WRAS/SVGW

£1.37*
Profec Quick coupler brass 13 mm hose tail CD 40 12bar
Profec Quick coupler brass 13 mm hose tail CD 40 12bar

£2.67*
Quick coupler steel galvanised 1/2" male thread CD 42 10bar
Quick coupler steel galvanised 1/2" male thread CD 42 10bar

£5.31*
Profec Ball valve brass nickel plated 1/4" female thread 25bar type 100 VA
Profec Ball valve brass nickel plated 1/4" female thread 25bar type 100 VA

£4.38*
Profec Elbow 90° PVC-U 20 mm glue socket 16bar grey KIWA
Profec Elbow 90° PVC-U 20 mm glue socket 16bar grey KIWA

£0.55*
Pressure pipe PVC-U 250 mm x 7,3 mm glue socket x plain 7,5bar grey 5m
Pressure pipe PVC-U 250 mm x 7,3 mm glue socket x plain 7,5bar grey 5m

£35.06*
Profec Hose tail adaptor brass 1/4" x 10 mm male thread x hose tail 30bar
Profec Hose tail adaptor brass 1/4" x 10 mm male thread x hose tail 30bar

£0.72*
Torsino Hose PVC 12.5 mm x 17 mm 10bar yellow/blue 50m type Torsino Plus
Torsino Hose PVC 12.5 mm x 17 mm 10bar yellow/blue 50m type Torsino Plus

£1.28*
Profec Union coupler PVC-U 16 mm glue socket 16bar grey
Profec Union coupler PVC-U 16 mm glue socket 16bar grey

£2.58*

Technical details

  • Holes
    8
  • Bolt hole
    18 mm
  • Material
    steel
  • Flange
    PN10/16
  • DIN Standard
    DIN 2566
  • Colour
    black
  • Height
    38 mm
  • Outer ø
    220 mm
  • Diameter
    114,3 mm
  • Thickness
    20 mm
  • Connection
    DIN flange x female thread
  • Pressure
    16 bar
  • EAN
    4019305218535
  • Part number
    1180218
  • Manufacturer
    Profec

Dimensions

  • PCD
    180 mm
  • PCD
    180 mm
  • ØDi-1
    4 "
  • O
    18 mm

Variants

Product number:
Size
Price
Box qty
MSQ
Stock
1180212
DN25 x 1"
£14.97
1
1
(31)
1180213
DN32 x 1 1/4"
£14.97
400
1
1180214
DN40 x 1 1/2"
£14.97
1
1
(3)
1180215
DN50 x 2"
£14.97
300
1
1180216
DN65 x 2 1/2"
£14.97
150
1
(10)
1180217
DN80 x 3"
£14.97
120
1
1180218
DN100 x 4"
£14.97
180
1
