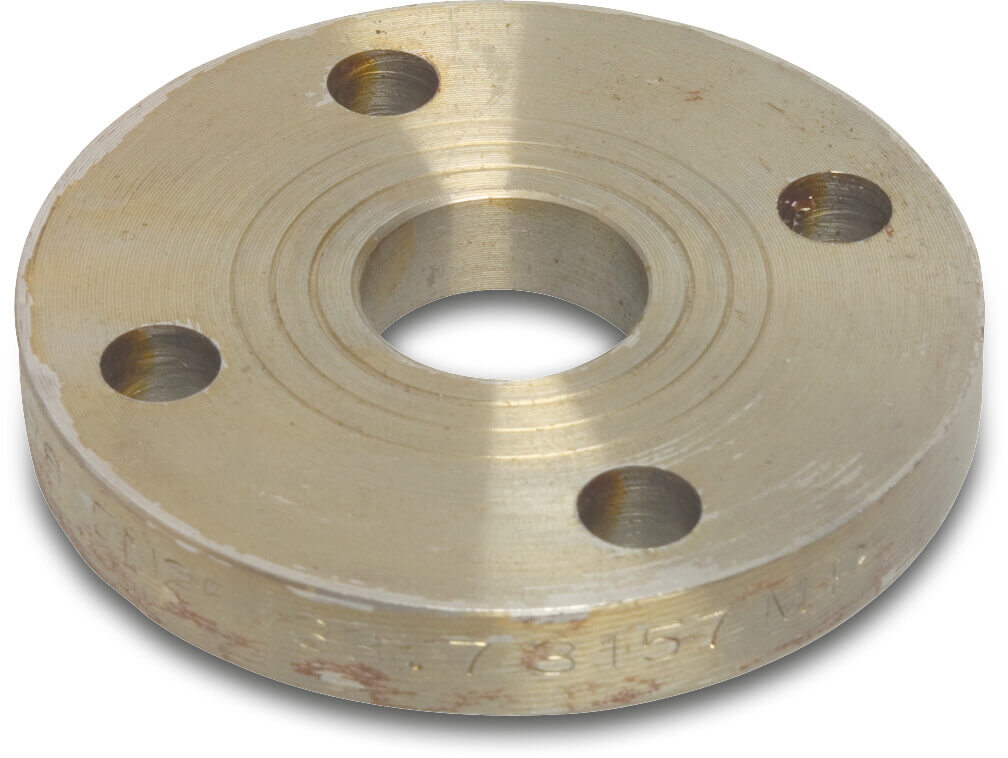

Profec Flange flat steel DN150 x 159,0 mm DIN flange x butt welding 10bar PN10

Product number: 1180243
Skip image gallery
Profec Flange flat steel DN150 x 159,0 mm DIN flange x butt welding 10bar PN10
Select your item below or order directly via full product table
Size
All prices shown are gross prices. Please log in or contact sales for custom, discounted pricing.
Price excl. VAT £80.81 / 1 pcs
£80.81 / pcs
Price incl. VAT £96.97 / 1 pcs
£96.97 / pcs
Please contact us to check availability - available on request, please contact sales team
105 in stock in Central European Warehouse - minimum delivery time: 1-2 working day(s)
pcs
Box qty:
120 pcs
MSQ:
1 pcs

Fast, free shipping on orders over £350*

Your trade partner in water technology

8.9/10 Read reviews

Frequently bought together

Profec Hose tail adaptor brass 1/4" x 10 mm male thread x hose tail 30bar
0411750
Profec Hose tail adaptor brass 1/4" x 10 mm male thread x hose tail 30bar

£0.85
Torsino Hose PVC 12.5 mm x 17 mm 10bar yellow/blue 50m type Torsino Plus
7028074
Torsino Hose PVC 12.5 mm x 17 mm 10bar yellow/blue 50m type Torsino Plus

£1.31
Profec Nr. 130 T-piece 90° cast iron galvanised 2" x 1 1/4" x 2" female thread 25bar DVGW
1013044
Profec Nr. 130 T-piece 90° cast iron galvanised 2" x 1 1/4" x 2" female thread 25bar DVGW

£15.11
Adaptor socket PP 51 mm x 2" compression x female thread 10bar black/orange type Layflat
7029288
Adaptor socket PP 51 mm x 2" compression x female thread 10bar black/orange type Layflat

£5.34
Cap PVC-U 225 mm glue socket 10bar grey
0101337
Cap PVC-U 225 mm glue socket 10bar grey

£110.14
Socket PP 16 mm lock 4bar black
7034851
Socket PP 16 mm lock 4bar black

£0.88
Profec Ball valve brass nickel plated 1/4" female thread 25bar type 100 VA
0403030
Profec Ball valve brass nickel plated 1/4" female thread 25bar type 100 VA

£4.98
Profec Elbow 45° PVC-U 16 mm glue socket 16bar grey
0110119
Profec Elbow 45° PVC-U 16 mm glue socket 16bar grey

£0.54
Profec T-piece 90° PVC-U 50 mm glue socket 16bar grey
0110247
Profec T-piece 90° PVC-U 50 mm glue socket 16bar grey

£2.51
Figure 8 end closure PP 16 mm black
7031967
Figure 8 end closure PP 16 mm black

£0.07

Technical details

  • Holes
    8
  • Material
    steel
  • Pressure
    10 bar
  • PCD
    240 mm
  • Thickness
    22 mm
  • Bolt hole
    22 mm
  • Connection
    DIN flange x butt welding
  • Outer ø
    285 mm
  • Flange
    PN10
  • Inner ø
    161,1 mm
  • DIN Standard
    DIN 2576
  • EAN
    4019305218696
  • Part number
    1180243
  • Manufacturer
    Profec

Dimensions

  • O
    22 mm
  • PCD
    240 mm
  • ØDi-1
    161.1 mm

Product description

The Profec Welding flange is a standard butt welding flange according to DIN 2576. The fitting has a DIN flange x butt welding connection. The fitting is available in a wide range of sizes.

The Profec Welding flange is made from steel.
Read more Read less

Variants

Product number:
Price
Box qty
MSQ
Stock
No variants found
Adjust or clear the selected filters to see available variants.
1180232
DN25 x 33,7 mm
£13.01
400
1
(21)
1180233
DN32 x 42,4 mm
£19.26
1
1
(12)
1180234
DN40 x 48,3 mm
£22.00
240
1
1180235
DN50 x 60,3 mm
£28.85
320
1
1180236
DN65 x 76,1 mm
£35.45
200
1
1180237
DN80 x 88,9 mm
£42.77
280
1
(73)
1180241
DN100 x 108,0 mm
£49.74
140
1
1180238
DN100 x 114,3 mm
£47.46
200
1
(197)
1180242
DN125 x 133,0 mm
£66.09
60
1
1180239
DN125 x 139,7 mm
£63.29
120
1
1180243
DN150 x 159,0 mm
£80.81
120
1
(105)
1180240
DN150 x 168,3 mm
£76.67
1
1
(75)
1180244
DN200 x 220,0 mm
£105.70
70
1
