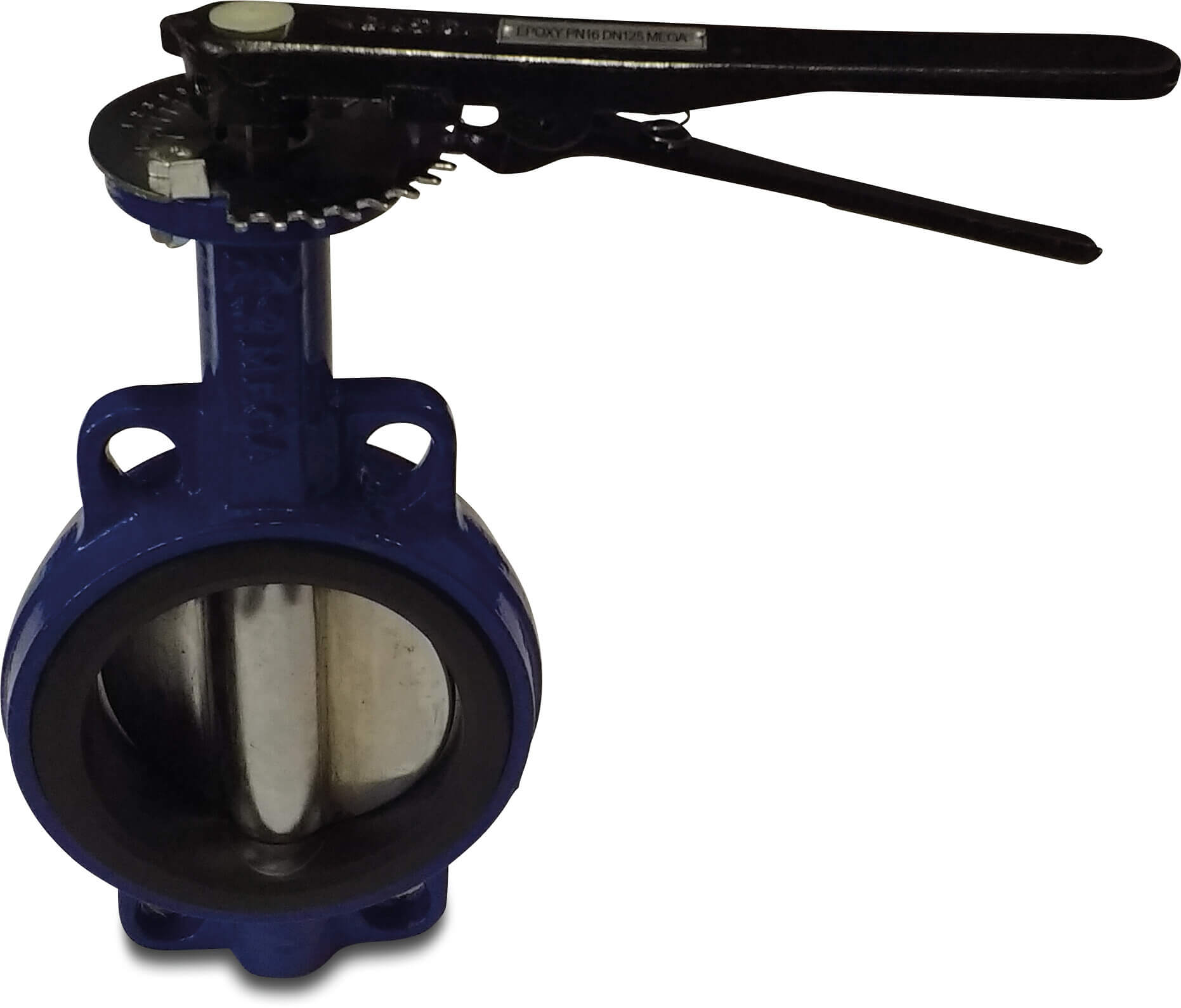

Profec Butterfly valve ductile iron (GGG40) epoxy coating DN125 flange 10bar DN125 blue PN6/10/16 type 600

Product number: 0401854

Manuals & drawings

Select your item below or order directly via full product table
Size
All prices shown are gross prices. Please log in or contact sales for custom, discounted pricing.
Price excl. VAT £57.75 / 1 pcs
£57.75 / pcs
Price incl. VAT £69.30 / 1 pcs
£69.30 / pcs
Out of stock, not expected before 2026-01-10
Item 0401854 is out of stock and not expected before: 2026-01-10
pcs
Box qty:
75 pcs
MSQ:
1 pcs

Fast, free shipping on orders over £350*

Your trade partner in water technology

8.9/10 Read reviews

Frequently bought together

Greener choice Greener choice
Pressure pipe PE40 16 mm x 1,5 mm plain 5bar black 100m
0700000
Pressure pipe PE40 16 mm x 1,5 mm plain 5bar black 100m

£0.59*
Profec Hose tail adaptor brass 1/4" x 10 mm male thread x hose tail 30bar
0411750
Profec Hose tail adaptor brass 1/4" x 10 mm male thread x hose tail 30bar

£0.72*
Torsino Hose PVC 12.5 mm x 17 mm 10bar yellow/blue 50m type Torsino Plus
7028074
Torsino Hose PVC 12.5 mm x 17 mm 10bar yellow/blue 50m type Torsino Plus

£1.28*
Profec Nr. 130 T-piece 90° cast iron galvanised 1/4" female thread 25bar DVGW
1013002
Profec Nr. 130 T-piece 90° cast iron galvanised 1/4" female thread 25bar DVGW

£2.27*
Profec Elbow 90° PVC-U 2" imperial glue socket 16bar grey WRAS
7036324
Profec Elbow 90° PVC-U 2" imperial glue socket 16bar grey WRAS

£3.23*
Adaptor socket PP 51 mm x 2" compression x female thread 10bar black/orange type Layflat
7029288
Adaptor socket PP 51 mm x 2" compression x female thread 10bar black/orange type Layflat

£4.28*
Profec Quick coupler brass 13 mm hose tail CD 40 12bar
0420012
Profec Quick coupler brass 13 mm hose tail CD 40 12bar

£2.67*
Jason Elbow 90° PP 16 mm compression 16bar black/blue DVGW/KIWA/WRAS/SVGW
0706516
Jason Elbow 90° PP 16 mm compression 16bar black/blue DVGW/KIWA/WRAS/SVGW

£1.37*
Socket PP 16 mm lock 4bar black
7034851
Socket PP 16 mm lock 4bar black

£0.88*
Profec Ball valve brass nickel plated 1/4" female thread 25bar type 100 VA
0403030
Profec Ball valve brass nickel plated 1/4" female thread 25bar type 100 VA

£4.38*

Technical details

  • Material spindle
    stainless steel 316
  • Material
    ductile iron (GGG40)
  • Material seal
    EPDM
  • Material housing
    ductile iron (GGG40)
  • Colour lever
    black
  • Operation
    lever
  • Surface treatment
    epoxy coating
  • Connection
    flange
  • Temperature range
    0°C - 90°C
  • Seat material
    EPDM
  • Handle material
    malleable cast iron
  • Type
    600
  • Colour
    blue
  • Material valve
    ductile iron
  • DN
    125
  • Flange
    PN6/10/16
  • EAN
    4019305257442
  • Part number
    0401854
  • Manufacturer
    Profec

Dimensions

  • W-2
    108 mm
  • PCD
    200/210 mm
  • Ct-1
    241 mm
  • R
    260 mm
  • W-1
    54 mm
Technical drawing

Variants

Product number:
Size
Pressure
Price
Box qty
MSQ
Stock
0401850
DN50
10 bar
£57.75
100
1
0401851
DN65
10 bar
£57.75
200
1
0401852
DN80
10 bar
£57.75
200
1
0401853
DN100
10 bar
£57.75
135
1
0401854
DN125
10 bar
£57.75
75
1
0401855
DN150
10 bar
£57.75
50
1
0401856
DN200
10 bar
£57.75
50
1
0401857
DN250
10 bar
£57.75
16
1
