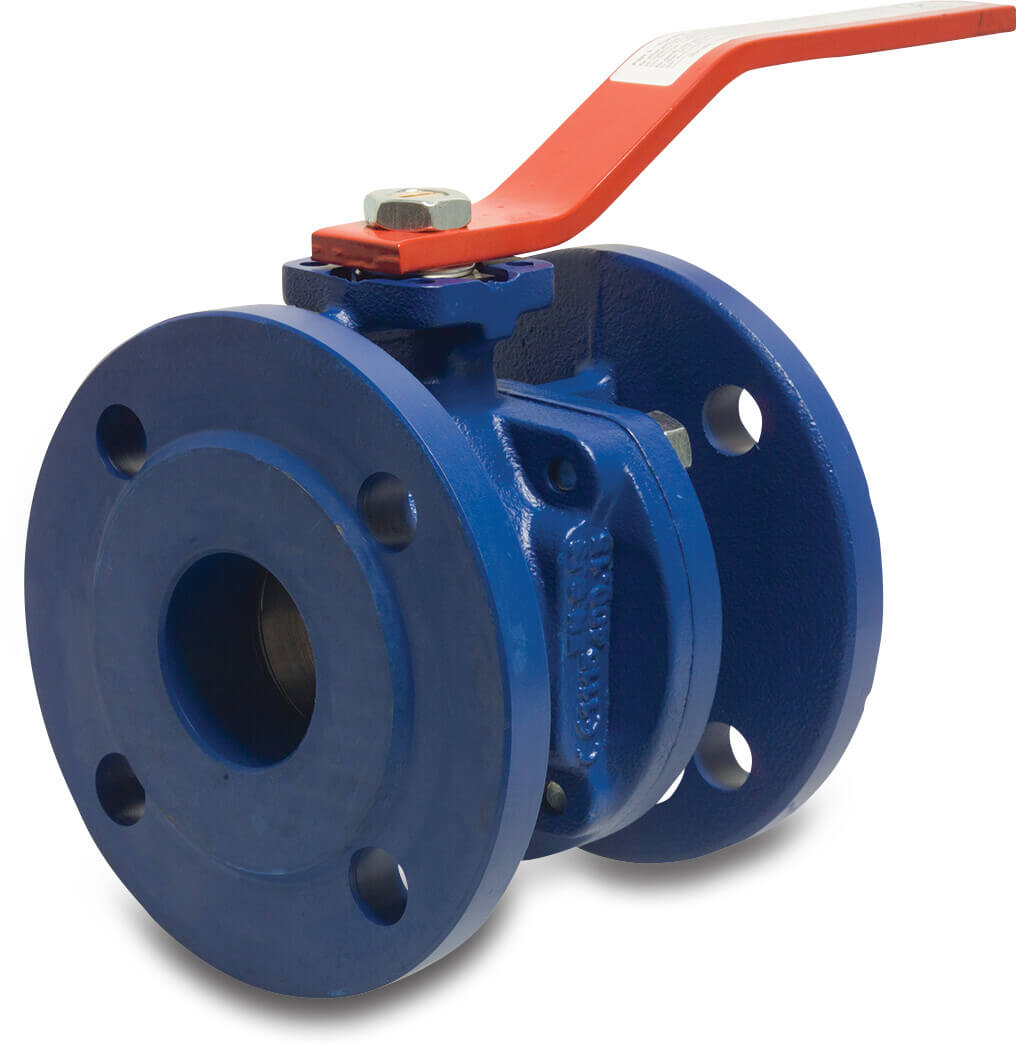

Profec Ball valve ductile cast iron GGG40 varnished DN65 DIN flange 16bar blue PN10/16

Product number: 0401602

Manuals & drawings

Select your item below or order directly via full product table
Size
All prices shown are gross prices. Please log in or contact sales for custom, discounted pricing.
Price excl. VAT £155.54 / 1 pcs
£155.54 / pcs
Price incl. VAT £186.65 / 1 pcs
£186.65 / pcs
Out of stock, please contact us for availability
Item 0401602 is out of stock
pcs
Box qty:
1 pcs
MSQ:
1 pcs

Fast, free shipping on orders over £350*

Your trade partner in water technology

8.9/10 Read reviews

Frequently bought together

Greener choice Greener choice
Pressure pipe PE40 16 mm x 1,5 mm plain 5bar black 100m
0700000
Pressure pipe PE40 16 mm x 1,5 mm plain 5bar black 100m

£0.59*
Profec Hose tail adaptor brass 1/4" x 10 mm male thread x hose tail 30bar
0411750
Profec Hose tail adaptor brass 1/4" x 10 mm male thread x hose tail 30bar

£0.72*
Torsino Hose PVC 12.5 mm x 17 mm 10bar yellow/blue 50m type Torsino Plus
7028074
Torsino Hose PVC 12.5 mm x 17 mm 10bar yellow/blue 50m type Torsino Plus

£1.28*
Profec Nr. 130 T-piece 90° cast iron galvanised 1/4" female thread 25bar DVGW
1013002
Profec Nr. 130 T-piece 90° cast iron galvanised 1/4" female thread 25bar DVGW

£2.27*
Profec Elbow 90° PVC-U 2" imperial glue socket 16bar grey WRAS
7036324
Profec Elbow 90° PVC-U 2" imperial glue socket 16bar grey WRAS

£3.23*
Adaptor socket PP 51 mm x 2" compression x female thread 10bar black/orange type Layflat
7029288
Adaptor socket PP 51 mm x 2" compression x female thread 10bar black/orange type Layflat

£4.28*
Profec Quick coupler brass 13 mm hose tail CD 40 12bar
0420012
Profec Quick coupler brass 13 mm hose tail CD 40 12bar

£2.67*
Jason Elbow 90° PP 16 mm compression 16bar black/blue DVGW/KIWA/WRAS/SVGW
0706516
Jason Elbow 90° PP 16 mm compression 16bar black/blue DVGW/KIWA/WRAS/SVGW

£1.37*
Socket PP 16 mm lock 4bar black
7034851
Socket PP 16 mm lock 4bar black

£0.88*
Profec Ball valve brass nickel plated 1/4" female thread 25bar type 100 VA
0403030
Profec Ball valve brass nickel plated 1/4" female thread 25bar type 100 VA

£4.38*

Technical details

  • Bolt hole
    18 mm
  • Temperature range
    -10°C - 100°C
  • Colour lever
    red
  • Flange
    PN10/16
  • Material
    ductile cast iron GGG40
  • Operation
    lever
  • Material seal
    PTFE
  • Handle material
    steel
  • Colour
    blue
  • Connection
    DIN flange
  • Holes
    4
  • Surface treatment
    varnished
  • EAN
    4019305102889
  • Part number
    0401602
  • Manufacturer
    Profec

Dimensions

  • L
    170 mm
  • PCD
    145 mm
  • R
    230 mm
  • PCD
    145 mm
  • Ct-1
    143 mm
Technical drawing

Variants

Product number:
Size
Pressure
Price
Box qty
MSQ
Stock
0401600
DN40
16 bar
£155.54
1
1
0401601
DN50
16 bar
£155.54
24
1
0401602
DN65
16 bar
£155.54
1
1
0401603
DN80
16 bar
£155.54
1
1
0401604
DN100
16 bar
£155.54
15
1
0401605
DN125
16 bar
£155.54
1
1
0401606
DN150
16 bar
£155.54
1
1
0401607
DN200
16 bar
£155.54
1
1
