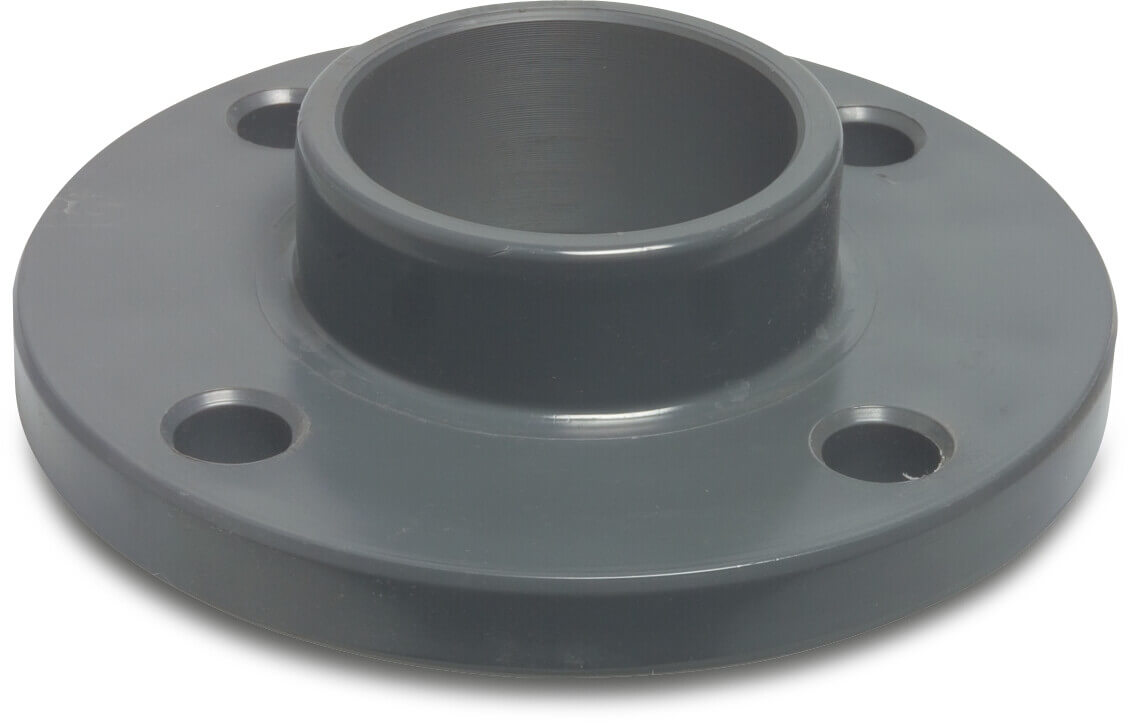

Flange adaptor PVC-U DN15 x 1/2" DIN flange x glue socket 16bar DN15 grey PN10/16 WRAS BS4504

Product number: 7036312

Manuals & drawings

Select your item below or order directly via full product table
Size
All prices shown are gross prices. Please log in or contact sales for custom, discounted pricing.
Price excl. VAT £3.45 / 1 pcs
£3.45 / pcs
Price incl. VAT £4.14 / 1 pcs
£4.14 / pcs
Available at supplier, please contact us
pcs
Box qty:
1 pcs
MSQ:
1 pcs

Fast, free shipping on orders over £350*

Your trade partner in water technology

8.9/10 Read reviews

Frequently bought together

Torsino Hose PVC 12.5 mm x 17 mm 10bar yellow/blue 50m type Torsino Plus
7028074
Torsino Hose PVC 12.5 mm x 17 mm 10bar yellow/blue 50m type Torsino Plus

£1.28*
Profec Nr. 130 T-piece 90° cast iron galvanised 1/4" female thread 25bar DVGW
1013002
Profec Nr. 130 T-piece 90° cast iron galvanised 1/4" female thread 25bar DVGW

£2.27*
Profec Elbow 90° PVC-U 2" imperial glue socket 16bar grey WRAS
7036324
Profec Elbow 90° PVC-U 2" imperial glue socket 16bar grey WRAS

£3.23*
Adaptor socket PP 51 mm x 2" compression x female thread 10bar black/orange type Layflat
7029288
Adaptor socket PP 51 mm x 2" compression x female thread 10bar black/orange type Layflat

£4.28*
Greener choice Greener choice
Pressure pipe PE40 16 mm x 1,5 mm plain 5bar black 100m
0700000
Pressure pipe PE40 16 mm x 1,5 mm plain 5bar black 100m

£0.59*
Profec Quick coupler brass 13 mm hose tail CD 40 12bar
0420012
Profec Quick coupler brass 13 mm hose tail CD 40 12bar

£2.67*
Jason Elbow 90° PP 16 mm compression 16bar black/blue DVGW/KIWA/WRAS/SVGW
0706516
Jason Elbow 90° PP 16 mm compression 16bar black/blue DVGW/KIWA/WRAS/SVGW

£1.37*
Profec Ball valve brass nickel plated 1/4" female thread 25bar type 100 VA
0403030
Profec Ball valve brass nickel plated 1/4" female thread 25bar type 100 VA

£4.38*
Profec Hose tail adaptor brass 1/4" x 10 mm male thread x hose tail 30bar
0411750
Profec Hose tail adaptor brass 1/4" x 10 mm male thread x hose tail 30bar

£0.72*
Quick coupler steel galvanised 1/2" male thread CD 42 10bar
0451672
Quick coupler steel galvanised 1/2" male thread CD 42 10bar

£5.31*

Technical details

  • Colour
    grey
  • Connection
    DIN flange x glue socket
  • Material
    PVC-U
  • Flange
    PN10/16
  • Thickness
    11 mm
  • Bolt
    M12
  • DN
    15
  • Model
    BS4504
  • Pressure
    16 bar
  • Bolt hole
    14 mm
  • Approval
    WRAS
  • Outer ø
    95 mm
  • Holes
    4
  • PCD
    65 mm
  • EAN
    4019305763486
  • Part number
    7036312

Dimensions

  • O
    14 mm

Variants

Product number:
Size
Price
Box qty
MSQ
Stock
7036273
DN100 x 4"
£3.45
1
1
7036274
DN20 x 3/4"
£3.45
1
1
7036275
DN25 x 1"
£3.45
1
1
7036276
DN32 x 1 1/4"
£3.45
1
1
7036277
DN40 x 1 1/2"
£3.45
1
1
7036278
DN50 x 2"
£3.45
1
1
7036279
DN65 x 2 1/2"
£3.45
1
1
7036280
DN80 x 3"
£3.45
1
1
7036312
DN15 x 1/2"
£3.45
1
1
