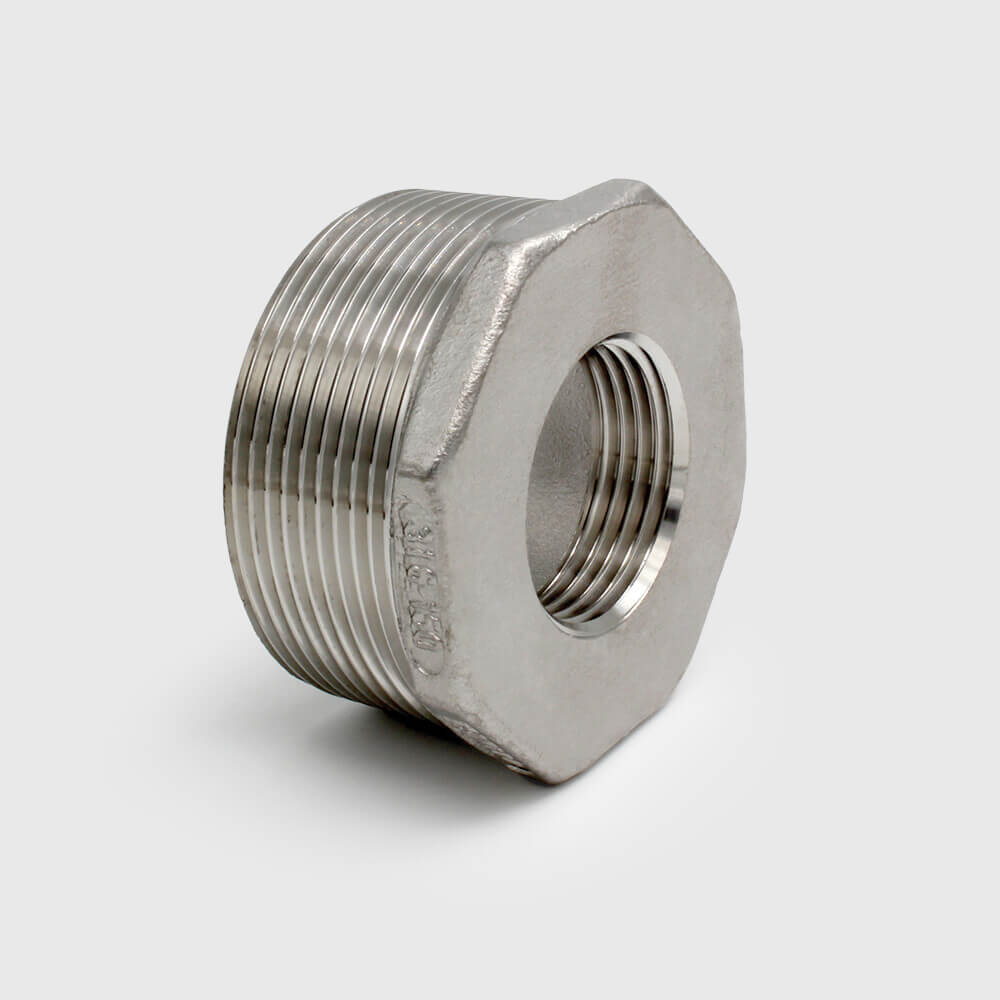

Profec Nr. 241 Reducer bush stainless steel 316 1/2" x 1/4" male thread x female thread 16bar

Part number 0080084
Skip image gallery
Select your item below or order directly via full product table
Size
Already a customer? Request your login to view pricing.
Out of stock in UK Warehouse
3549 in stock in Central European Warehouse - minimum delivery time: 3-6 working day(s)

Fast, free shipping on orders over £350*

Your trade partner in water technology

8.4/10 Customer rating

Frequently bought together
1065060
Profec Nr. 23 Pipe nipple steel galvanised 1 1/4" male thread 16bar 60 mm
1024110
Profec Nr. 241 Reducer bush cast iron galvanised 3/4" x 1/2" male thread x female thread 25bar DVGW
0706925
Jason Reducer T-piece 90° PP 25 mm x 20 mm x 25 mm compression 16bar black/blue DVGW/KIWA/WRAS/SVGW
0707033
Jason Adaptor T-piece 90° PP 32 mm x 1" x 32 mm compression x female thread x compression 16bar black/blue DVGW/KIWA/WRAS/SVGW
0120532
Profec Bolt saddle PP 32 mm x 3/4" clamp x female thread 16bar black
0121241
Plug PP 1/2" male thread 10bar black
0464494
Profec Wormdrive hose clip stainless steel 304 110 mm x 130 mm type W4 12 mm
0080019
Profec Nr. 92 Elbow 90° stainless steel 316 3/4" female thread x male thread 16bar
0121515
Reducer nipple PP 2 1/2" x 2" male thread 6bar black
0080308
Profec Hose tail stainless steel 316 2" x 52 mm male thread x hose tail 50bar

Technical details

  • Connection
    male thread x female thread
  • Fitting nr.
    Nr. 241
  • Max. temp.
    100 °C
  • Pressure
    16 bar
  • Material
    stainless steel 316
  • EAN
    4019305011846
  • Part number
    0080084
  • Manufacturer
    Profec

Dimensions

  • F-1
    15.4 mm
  • K-1
    22.5 mm
  • L
    20.2 mm
  • ØDi-1
    1/4 "
  • ØDo-1
    1/2 "

Product description

The Nr. 241 - Reducing Bush is a standard Stainless Steel 316 fittings with a thread in female and male BSP. It is produced according to the UNI EN ISO 226 and UNI EN ISO 228 standards replacing ISO 7/1 and DIN 2999. The fitting is available in a wide range of sizes.

Read more Read less

Variants

Part number
Packed per
MSQ
Stock
No variants found
Adjust or clear the selected filters to see available variants.
0080082
3/8" x 1/4"
630
10
(9)
(2592)
0080084
1/2" x 1/4"
630
10
(7)
(3549)
0080088
3/4" x 1/2"
440
10
(236)
(2866)
0080079
1" x 1/4"
250
10
(27)
(1045)
0080090
1" x 1/2"
288
10
(24)
(550)
0080091
1" x 3/4"
252
10
(186)
(1932)
0080094
1 1/4" x 1"
180
1
(134)
(840)
0080096
1 1/2" x 1/2"
100
1
(7)
0080098
1 1/2" x 1"
100
1
(15)
(653)
0080372
2" x 3/4"
60
1
(214)
0080100
2" x 1"
75
1
(82)
(452)
