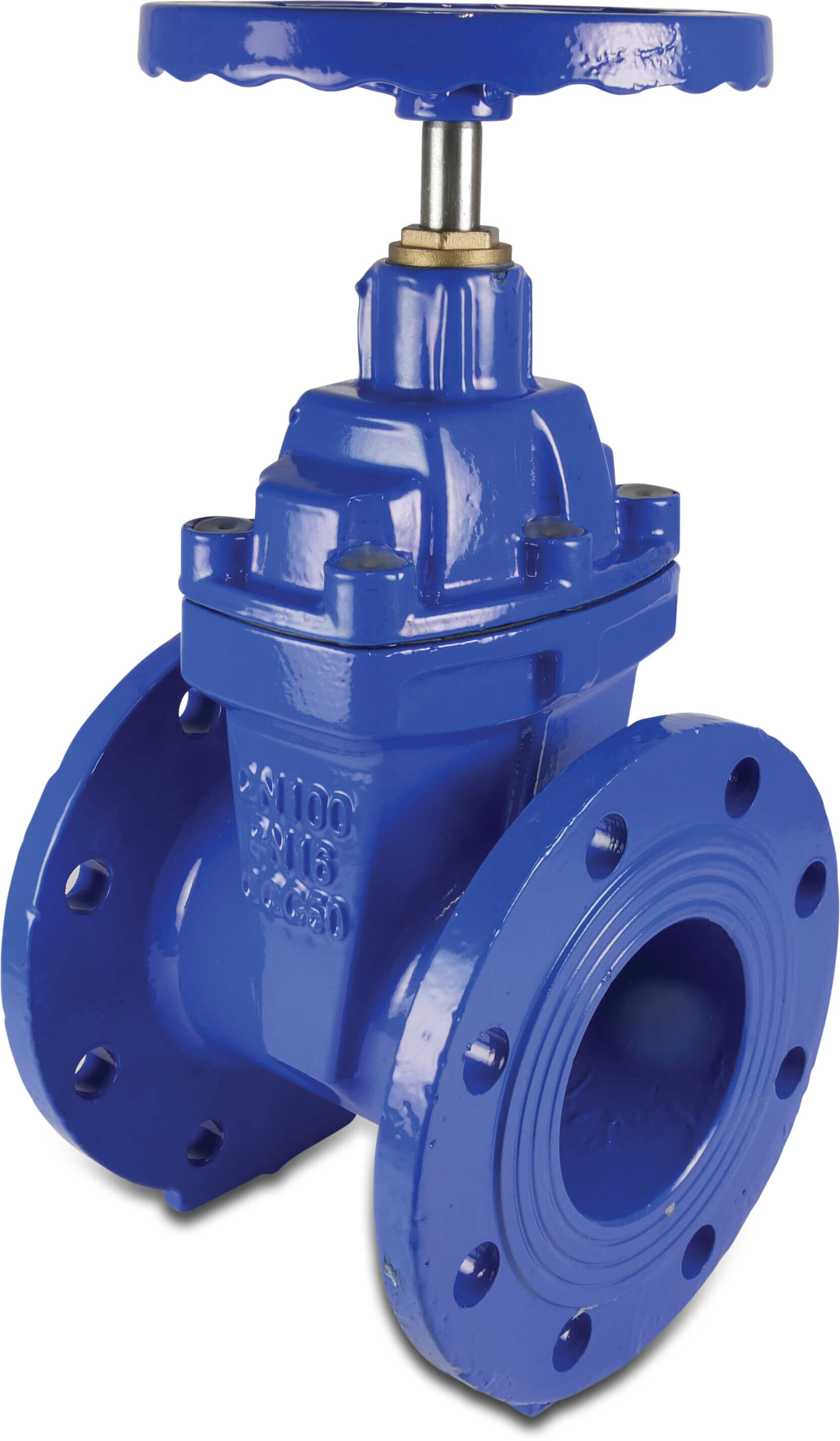

Profec Gate valve cast iron GGG 50 epoxy coating DN200 DIN flange 16bar blue PN10 type 302
Product number: 7038248
Manuals & drawings
Select your item below or order directly via
full product table
All prices shown are gross prices. Please log in or contact sales for custom, discounted pricing.
Price to pay excl. VAT
€325.42 / 1 pcs
€325.42 / pcs
Price to pay incl. VAT
€400.27 / 1 pcs
€400.27 / pcs
Out of stock, not expected before 2026-05-18
Frequently bought together
0309025
0169908
Technical details
-
Type302
-
Max. temp.120 °C
-
Materialcast iron GGG 50
-
PCD295 mm
-
Holes8
-
Material valvecast iron EPDM coated
-
Flange according to DINDIN 2501/PN10
-
Material spindlestainless steel
-
Colour leverblue
-
Material sealNBR
-
Surface treatmentepoxy coating
-
Handle materialcast iron
-
Length230 mm
-
Material housingcast iron GGG 50
-
Pressure16 bar
-
Colourblue
-
ConnectionDIN flange
-
FlangePN10
-
Max. temperature110 °C
-
Operationhandwheel
-
EAN4019305777490
-
Part number7038248
-
ManufacturerProfec
Dimensions
-
PCD295 mm
-
L230 mm
-
L230 mm
-
Ct-1478 mm
-
R290 mm
