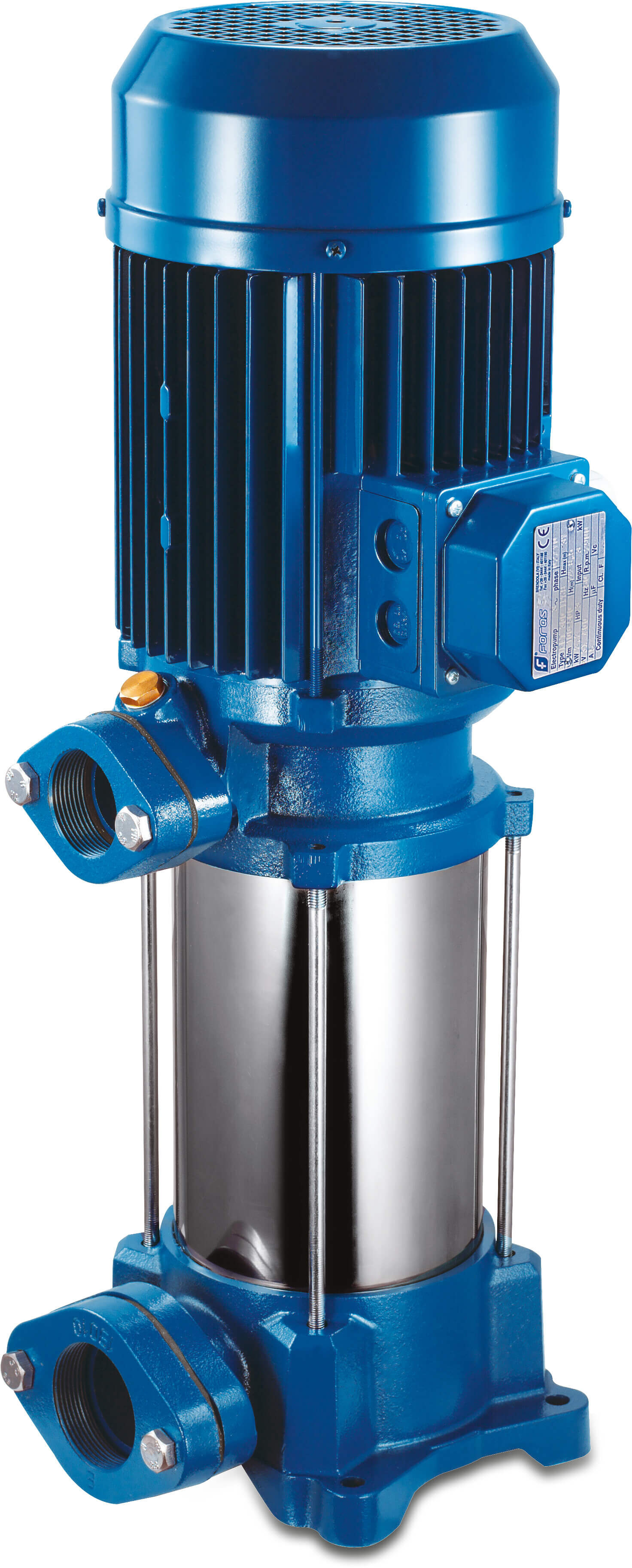

Foras Multi-stage centrifugal pump cast iron 1 1/4" female thread 5,1A 230/400VAC blue type P7SV - 350/7T
Product information
| Cb-1 | 40 mm |
|---|---|
| Cl-1 | 135 mm |
| Colour | blue |
| Connection | female thread |
| Frequency | 50 Hz |
| G-1 | 125 mm |
| G-2 | 178.5 mm |
| IP value | IP44 |
| L | 229 mm |
| Material | cast iron |
| Material impeller 1 | noryl |
| Max flow rate | 10.8 m³/h |
| Maximum ambient temperature | 40 °C |
| O | 11 mm |
| Press | 1 1/4 " |
| Pump body | cast iron |
| Seal | type M |
| Shaft | stainless steel 304 |
| Suction | 1 1/4 " |
| Voltage | 230/400VAC |
| W-1 | 162 mm |
| W-2 | 204 mm |
| ØDi-1 | 1 1/4 " |
| ØDi-2 | 1 1/4 " |
| Size | 1 1/4" |
