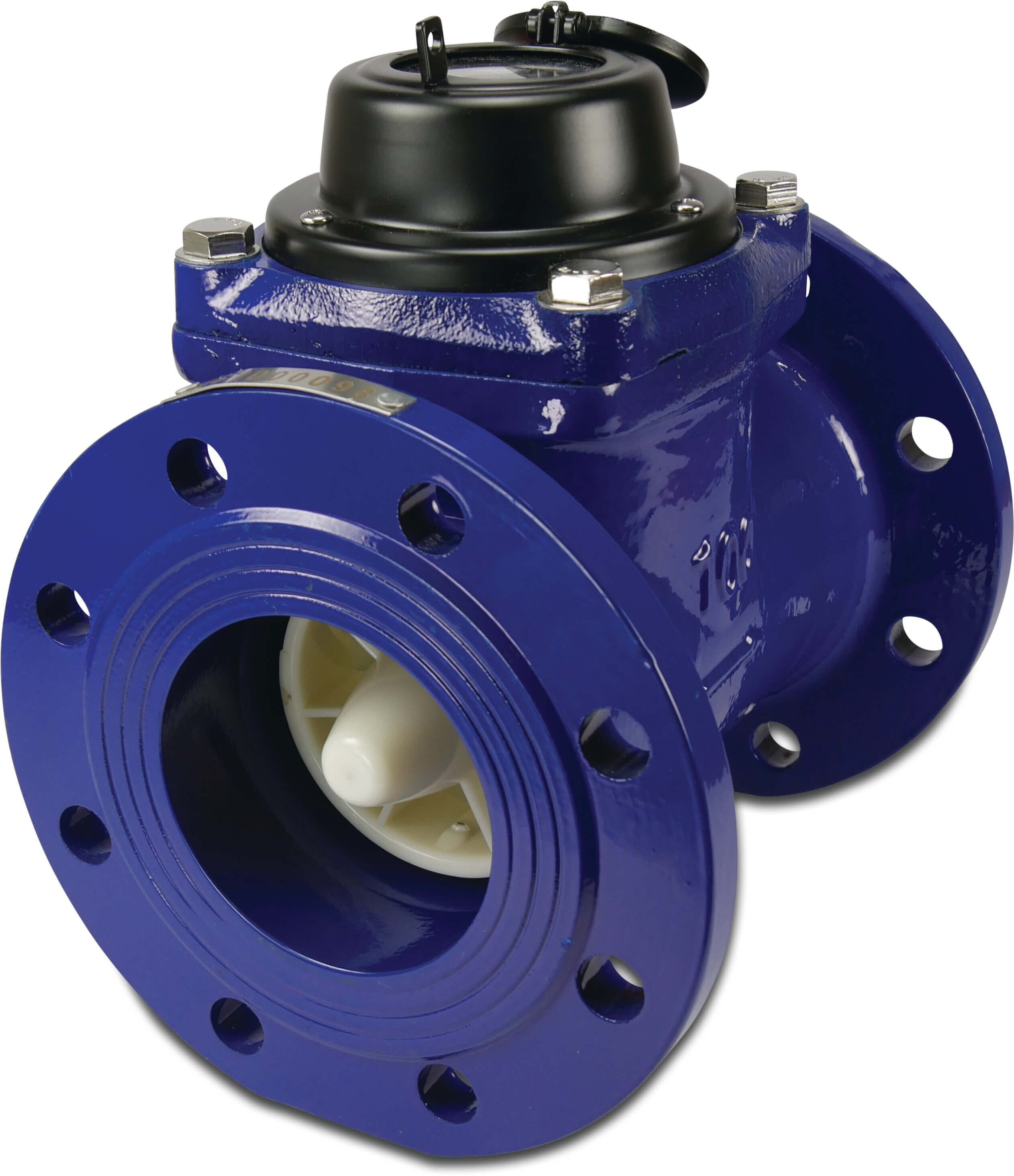

Profec Water meter cast iron DN150 DIN flange 16bar 150m³/h blue LXLC(R) type Woltman horizontal

Product number: 7021134

Manuals & drawings

Select your item below or order directly via full product table
Size
Capacity Qn
All prices shown are gross prices. Please log in or contact sales for custom, discounted pricing.
Price excl. VAT £188.71 / 1 pcs
£188.71 / pcs
Price incl. VAT (£226.45 / 1 pcs)
Out of stock, not expected before 2026-03-16
pcs
Box qty:
1 pcs
MSQ:
1 pcs

Frequently bought together

Torsino Hose PVC 12.5 mm x 17 mm 10bar yellow/blue 50m type Torsino Plus
Torsino Hose PVC 12.5 mm x 17 mm 10bar yellow/blue 50m type Torsino Plus

£1.28*
Profec Nr. 130 T-piece 90° cast iron galvanised 1/4" female thread 25bar DVGW
Profec Nr. 130 T-piece 90° cast iron galvanised 1/4" female thread 25bar DVGW

£2.27*
Profec Elbow 90° PVC-U 2" imperial glue socket 16bar grey WRAS
Profec Elbow 90° PVC-U 2" imperial glue socket 16bar grey WRAS

£3.23*
Adaptor socket PP 51 mm x 2" compression x female thread 10bar black/orange type Layflat
Adaptor socket PP 51 mm x 2" compression x female thread 10bar black/orange type Layflat

£4.28*
Greener choice Greener choice
Pressure pipe PE40 16 mm x 1,5 mm plain 5bar black 100m
Pressure pipe PE40 16 mm x 1,5 mm plain 5bar black 100m

£0.59*
Profec Quick coupler brass 13 mm hose tail CD 40 12bar
Profec Quick coupler brass 13 mm hose tail CD 40 12bar

£2.67*
Jason Elbow 90° PP 16 mm compression 16bar black/blue DVGW/KIWA/WRAS/SVGW
Jason Elbow 90° PP 16 mm compression 16bar black/blue DVGW/KIWA/WRAS/SVGW

£1.37*
Profec Ball valve brass nickel plated 1/4" female thread 25bar type 100 VA
Profec Ball valve brass nickel plated 1/4" female thread 25bar type 100 VA

£4.38*
Profec Hose tail adaptor brass 1/4" x 10 mm male thread x hose tail 30bar
Profec Hose tail adaptor brass 1/4" x 10 mm male thread x hose tail 30bar

£0.72*
Pressure pipe PVC-U 250 mm x 7,3 mm glue socket x plain 7,5bar grey 5m
Pressure pipe PVC-U 250 mm x 7,3 mm glue socket x plain 7,5bar grey 5m

£35.06*

Technical details

  • Capacity Qmax
    300 m³/h
  • PCD
    240 mm
  • Type
    Woltman
  • Capacity
    250 m³/h
  • Length
    300 mm
  • Material flange
    cast iron
  • Model
    LXLC(R)
  • Pressure
    16 bar
  • Colour
    blue
  • Connection
    DIN flange
  • Diam.
    6 "
  • Temperature range
    0,1°C - 40°C
  • Type
    horizontal
  • Material seal
    rubber reinforced with nylon
  • Material
    cast iron
  • EAN
    4019305657730
  • Part number
    7021134
  • Manufacturer
    Profec

Dimensions

  • PCD
    240 mm
  • H
    319 mm

Barcode

4019305657730

Variants

Product number:
Size
Capacity Qn
Price
Box qty
MSQ
Stock
0892520
DN50
15 m³/h
£188.71
1
1
(17)
7021132
DN65
25 m³/h
£188.71
1
1
0892522
DN80
40 m³/h
£188.71
1
1
0892523
DN100
60 m³/h
£188.71
1
1
(44)
7021133
DN125
100 m³/h
£188.71
1
1
7021134
DN150
150 m³/h
£188.71
1
1
