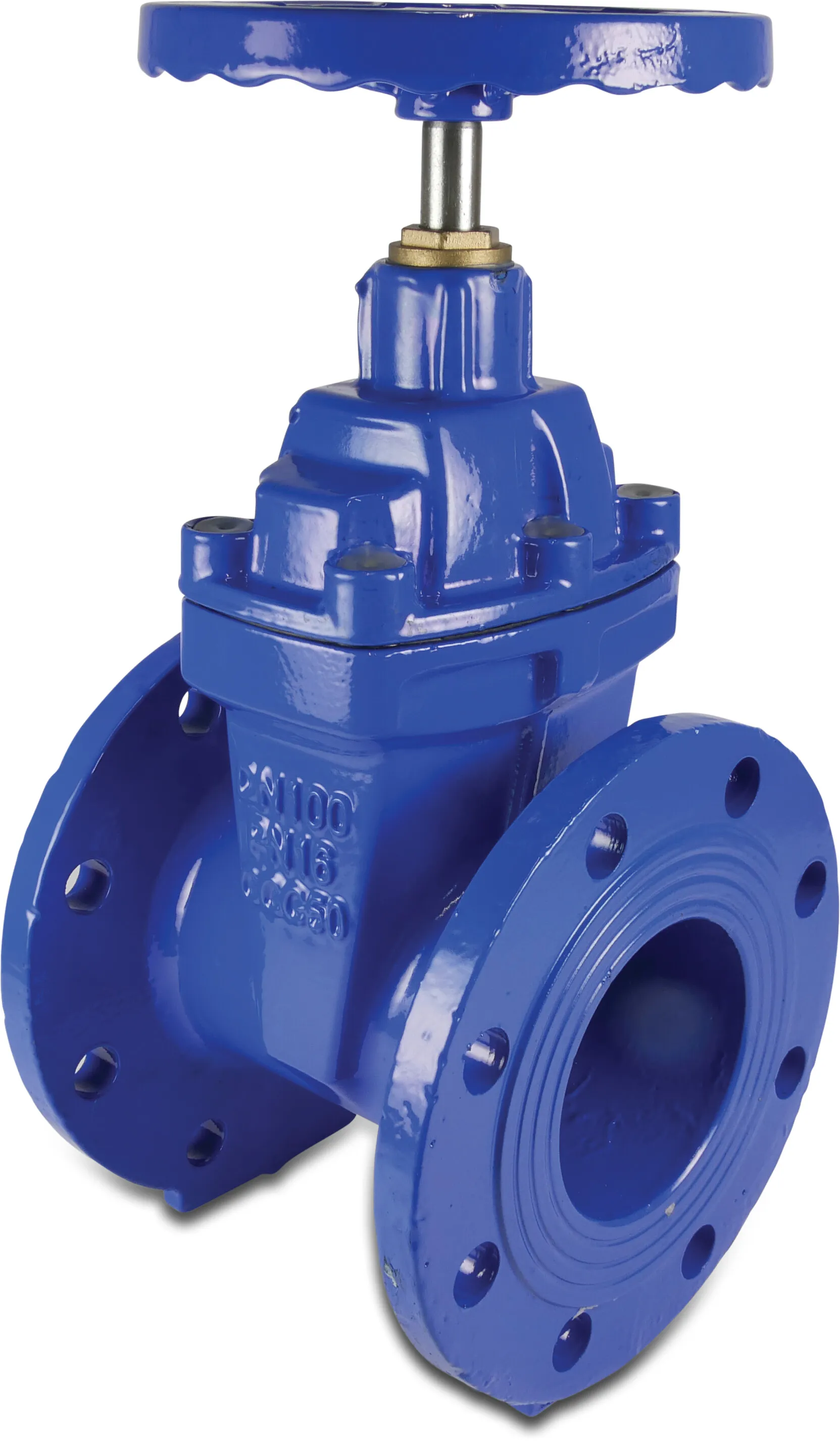

Profec Gate valve cast iron GGG 50 epoxy coating DN50 DIN flange 16bar blue PN10/16 type 302

Product number: 7038242
Skip image gallery
Profec Gate valve cast iron GGG 50 epoxy coating DN50 DIN flange 16bar blue PN10/16 type 302
Profec Gate valve cast iron GGG 50 epoxy coating DN50 DIN flange 16bar blue PN10/16 type 302
Select your item below or order directly via full product table
Size
All prices shown are gross prices. Please log in or contact sales for custom, discounted pricing.
Price excl. VAT £64.50 / 1 pcs
£64.50 / pcs
Price incl. VAT £77.40 / 1 pcs
£77.40 / pcs
Out of stock, please contact us for availability
pcs
Box qty:
40 pcs
MSQ:
1 pcs

Fast, free shipping on orders over £350*

Your trade partner in water technology

8.9/10 Read reviews

Frequently bought together

Profec Hose tail adaptor brass 1/4" x 10 mm male thread x hose tail 30bar
0411750
Profec Hose tail adaptor brass 1/4" x 10 mm male thread x hose tail 30bar

£0.85
Torsino Hose PVC 12.5 mm x 17 mm 10bar yellow/blue 50m type Torsino Plus
7028074
Torsino Hose PVC 12.5 mm x 17 mm 10bar yellow/blue 50m type Torsino Plus

£1.31
Profec Nr. 130 T-piece 90° cast iron galvanised 2" x 1 1/4" x 2" female thread 25bar DVGW
1013044
Profec Nr. 130 T-piece 90° cast iron galvanised 2" x 1 1/4" x 2" female thread 25bar DVGW

£15.11
Adaptor socket PP 51 mm x 2" compression x female thread 10bar black/orange type Layflat
7029288
Adaptor socket PP 51 mm x 2" compression x female thread 10bar black/orange type Layflat

£5.34
Cap PVC-U 225 mm glue socket 10bar grey
0101337
Cap PVC-U 225 mm glue socket 10bar grey

£110.14
Socket PP 16 mm lock 4bar black
7034851
Socket PP 16 mm lock 4bar black

£0.88
Profec Ball valve brass nickel plated 1/4" female thread 25bar type 100 VA
0403030
Profec Ball valve brass nickel plated 1/4" female thread 25bar type 100 VA

£4.98
Profec Elbow 45° PVC-U 16 mm glue socket 16bar grey
0110119
Profec Elbow 45° PVC-U 16 mm glue socket 16bar grey

£0.54
Profec T-piece 90° PVC-U 50 mm glue socket 16bar grey
0110247
Profec T-piece 90° PVC-U 50 mm glue socket 16bar grey

£2.51
Figure 8 end closure PP 16 mm black
7031967
Figure 8 end closure PP 16 mm black

£0.07

Technical details

  • Type
    302
  • Max. temp.
    120 °C
  • Material
    cast iron GGG 50
  • Material valve
    cast iron EPDM coated
  • Flange according to DIN
    DIN 2501/PN10
  • Material spindle
    stainless steel
  • Flange
    PN10/16
  • Colour lever
    blue
  • Material seal
    NBR
  • Surface treatment
    epoxy coating
  • Handle material
    cast iron
  • Material housing
    cast iron GGG 50
  • Pressure
    16 bar
  • Colour
    blue
  • Length
    150 mm
  • Connection
    DIN flange
  • PCD
    125 mm
  • Holes
    4
  • Max. temperature
    110 °C
  • Operation
    handwheel
  • EAN
    4019305777438
  • Part number
    7038242
  • Manufacturer
    Profec

Dimensions

  • Ct-1
    208 mm
  • L
    150 mm
  • L
    150 mm
  • PCD
    125 mm
  • R
    160 mm
Technical drawing

Variants

Product number:
Price
Box qty
MSQ
Stock
No variants found
Adjust or clear the selected filters to see available variants.
7038242
DN50
£64.50
40
1
7038243
DN65
£80.71
24
1
7038244
DN80
£93.69
56
1
7038245
DN100
£110.73
43
1
7038246
DN125
£150.76
30
1
7038247
DN150
£190.45
24
1
7038248
DN200
£295.77
8
1
7038249
DN250
£507.63
5
1
7038250
DN300
£645.61
4
1
