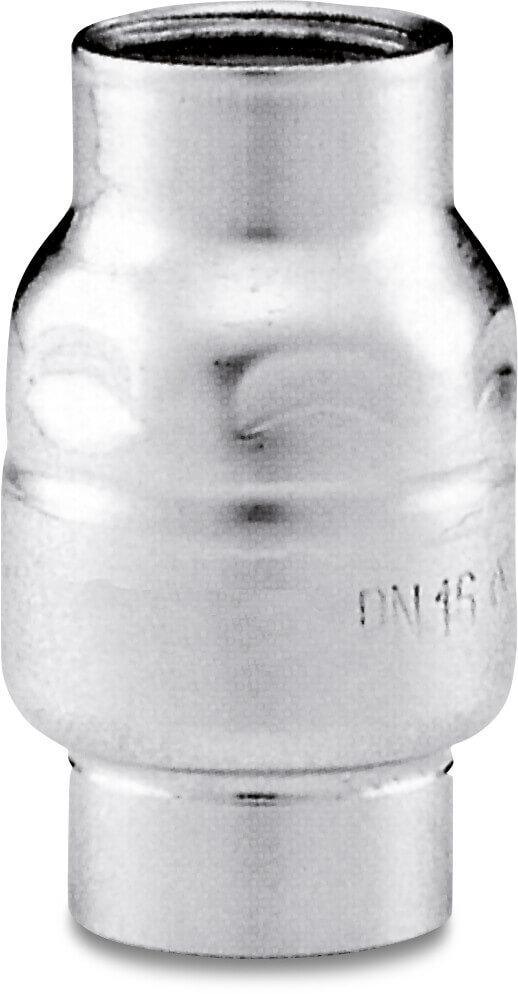

Non return valve spring loaded stainless steel 316 1/4" female thread 16bar DN08 type M1

Product number: 0081360

Manuals & drawings

Select your item below or order directly via full product table
Size
All prices shown are gross prices. Please log in or contact sales for custom, discounted pricing.
Price excl. VAT £619.32 / 12 pcs
£51.61 / pcs
Price incl. VAT (£743.16 / 12 pcs)
Available at supplier, please contact us
pcs
Box qty:
1 pcs
MSQ:
12 pcs

Frequently bought together

Profec Nr. 300 Cap stainless steel 316 1/4" female thread 16bar type hexagon
Profec Nr. 300 Cap stainless steel 316 1/4" female thread 16bar type hexagon

£1.47*
Profec Nr. 270 Socket stainless steel 316 1/4" female thread 16bar
Profec Nr. 270 Socket stainless steel 316 1/4" female thread 16bar

£1.46*
Profec Nr. 120 Elbow 45° stainless steel 316 1/4" female thread 16bar
Profec Nr. 120 Elbow 45° stainless steel 316 1/4" female thread 16bar

£1.98*
Profec Nr. 180 Cross-piece stainless steel 316 1/4" female thread 16bar
Profec Nr. 180 Cross-piece stainless steel 316 1/4" female thread 16bar

£2.45*
Profec Nr. 23 Pipe nipple stainless steel 316 1/4" male thread 16bar 40 mm
Profec Nr. 23 Pipe nipple stainless steel 316 1/4" male thread 16bar 40 mm

£1.09*
Profec Ball valve brass nickel plated 1/4" female thread 25bar type 100
Profec Ball valve brass nickel plated 1/4" female thread 25bar type 100

£4.47*
Drain valve brass 1/4" male thread x hose tail
Drain valve brass 1/4" male thread x hose tail

£3.26*
Profec Nr. 23 Pipe nipple steel galvanised 1/4" male thread 16bar 150 mm
Profec Nr. 23 Pipe nipple steel galvanised 1/4" male thread 16bar 150 mm

£3.46*
Profec Nr. 40 Bend 45° cast iron galvanised 1/4" female thread x male thread 25bar DVGW
Profec Nr. 40 Bend 45° cast iron galvanised 1/4" female thread x male thread 25bar DVGW

£2.93*
Profec Nr. 300 Hexagon cap cast iron galvanised 1/4" female thread 25bar DVGW
Profec Nr. 300 Hexagon cap cast iron galvanised 1/4" female thread 25bar DVGW

£1.20*

Technical details

  • DN
    08
  • Temperature range
    -20°C - 150°C
  • Width
    32 mm
  • Material seal
    FKM
  • Material housing
    stainless steel 316
  • Opening pressure
    0,025 bar
  • Capacity
    2,5 m³/h
  • Connection
    female thread
  • Material (spring)
    stainless steel 316
  • Type
    M1
  • Pressure
    16 bar
  • Material
    stainless steel 316
  • EAN
    4019305353014
  • Part number
    0081360
  • Manufacturer
    Unbranded

Dimensions

  • L
    56 mm

Variants

Product number:
Size
Price
Box qty
MSQ
Stock
0081360
1/4"
£51.61
1
12
0081361
3/8"
£51.61
1
12
0081362
1/2"
£51.61
1
12
