Non return valve spring loaded stainless steel 316 1 1/4" female thread 16bar DN32 type M316

Product number: 0080472

Manuals & drawings

Select your item below or order directly via full product table
Size
All prices shown are gross prices. Please log in or contact sales for custom, discounted pricing.
Price excl. VAT £399.96 / 6 pcs
£66.66 / pcs
Price incl. VAT (£479.94 / 6 pcs)
Available at supplier, please contact us, not expected before 2026-01-30
pcs
Box qty:
1 pcs
MSQ:
6 pcs

Frequently bought together

Profec Foot valve spring loaded brass 1 1/4" female thread 8bar DN32 stainless steel 304
Profec Foot valve spring loaded brass 1 1/4" female thread 8bar DN32 stainless steel 304

£7.03*
Foot valve spring loaded PA 1 1/4" female thread 10bar white type 2730
Foot valve spring loaded PA 1 1/4" female thread 10bar white type 2730

£9.49*
Gasket for angle return valve 427 fibre 1 1/4" red
Gasket for angle return valve 427 fibre 1 1/4" red

£0.39*

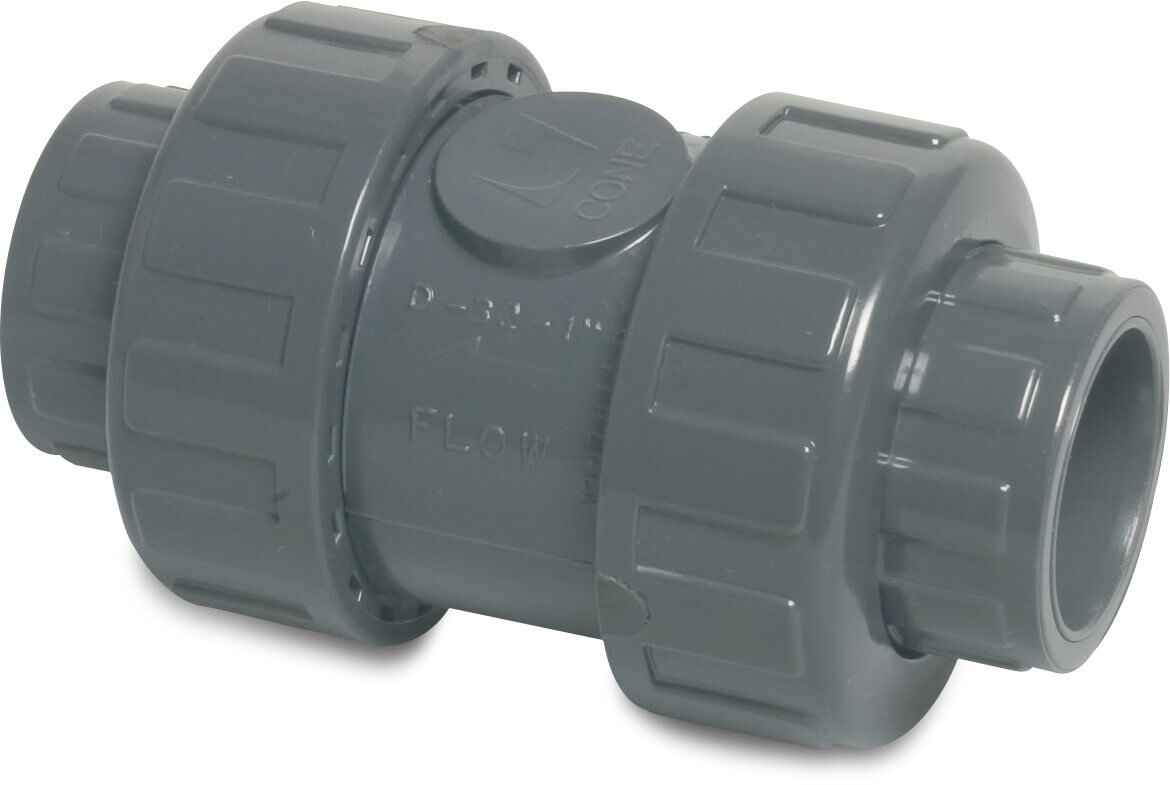

Profec Non return valve PVC-U 1 1/4" imperial glue socket 16bar grey type 5000
Profec Non return valve PVC-U 1 1/4" imperial glue socket 16bar grey type 5000

£16.67*
Profec Gate valve brass 1 1/4" female thread 16bar DN32 type 201
Profec Gate valve brass 1 1/4" female thread 16bar DN32 type 201

£19.04*
Profec Nr. 312 Nut stainless steel 316 1 1/4" female thread 16bar
Profec Nr. 312 Nut stainless steel 316 1 1/4" female thread 16bar

£2.32*
Profec Nr. 341 Union coupler stainless steel 316 1 1/4" female thread x male thread 16bar type conical
Profec Nr. 341 Union coupler stainless steel 316 1 1/4" female thread x male thread 16bar type conical

£22.16*
Quick coupler stainless steel 316 1 1/4" male part Camlock x female thread 16bar type Camlock A
Quick coupler stainless steel 316 1 1/4" male part Camlock x female thread 16bar type Camlock A

£17.07*
Profec Nr. 280 Nipple stainless steel 316 1 1/4" male thread 16bar
Profec Nr. 280 Nipple stainless steel 316 1 1/4" male thread 16bar

£6.42*
Profec Nr. 130 T-piece 90° stainless steel 316 1 1/4" female thread 16bar
Profec Nr. 130 T-piece 90° stainless steel 316 1 1/4" female thread 16bar

£11.66*

Technical details

  • Type
    M316
  • Temperature range
    -20°C - 150°C
  • DN
    32
  • Material housing
    stainless steel 316
  • Opening pressure
    0,025 bar
  • Connection
    female thread
  • Material (spring)
    stainless steel 316
  • Pressure
    16 bar
  • Capacity
    31,5 m³/h
  • Width
    66 mm
  • Material seal
    viton
  • Material
    stainless steel 316
  • EAN
    4019305352598
  • Part number
    0080472
  • Manufacturer
    Unbranded

Dimensions

  • L
    97 mm

Barcode

4019305352598

Variants

Product number:
Size
Price
Box qty
MSQ
Stock
0080470
3/4"
£66.66
8
8
0080471
1"
£66.66
1
8
0080472
1 1/4"
£66.66
1
6
0080473
1 1/2"
£66.66
6
6
0080474
2"
£66.66
1
4
