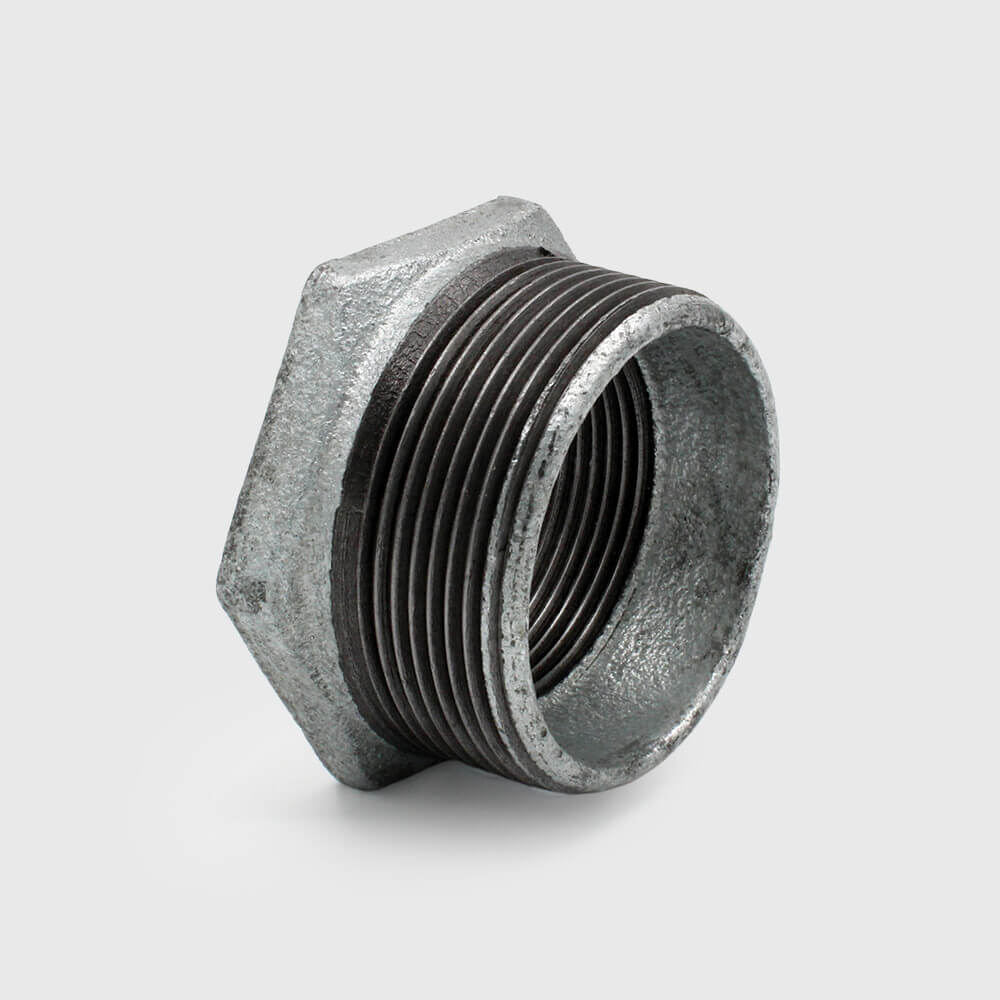

Profec Nr. 241 Reducer bush cast iron galvanised 1/2" x 1/4" male thread x female thread 25bar DVGW

Part number 1024105
Skip image gallery

Downloads

Select your item below or order directly via full product table
Size
Already a customer? Request your login to view pricing.
2375 in stock in UK warehouse - minimum delivery time: 1-2 working day(s)

Fast, free shipping on orders over £350*

Your trade partner in water technology

8.4/10 Customer rating

Frequently bought together
1024504
Profec Nr. 245 Reducer nipple cast iron galvanised 1/2" x 1/4" male thread 25bar DVGW
0080054
Profec Nr. 240 Reducer socket stainless steel 316 1/2" x 1/4" female thread 16bar
0403000
Profec Ball valve brass nickel plated 1/4" female thread 25bar type 100
0330225
Hose tail 2/3 union adaptor PP 1/2" x 13 mm female threaded nut x hose tail 6bar grey
0707031
Jason Adaptor T-piece 90° PP 32 mm x 3/4" x 32 mm compression x female thread x compression 16bar black/blue DVGW/KIWA/WRAS/SVGW
0121251
Cap PP 3/4" female thread 10bar black
0431528
Quick coupler cap PP 2" female part Camlock 6bar black type Camlock DC
7034322
Jason Adaptor socket PP 20-27 mm x 25 mm compression 10bar black/blue DVGW/KIWA/WRAS
0431750
Quick coupler PP 1/2" female part Camlock x male thread 7,5bar black type Camlock B
7037795
Elbow 90° PP 3" female thread 10bar black

Technical details

  • Approval
    DVGW
  • Connection
    male thread x female thread
  • Fitting nr.
    Nr. 241
  • Pressure
    25 bar
  • Surface treatment
    galvanised
  • Temperature range
    -20°C - 120°C
  • Material
    cast iron
  • EAN
    4019305208314
  • Part number
    1024105
  • Manufacturer
    Profec

Dimensions

  • F-1
    9 mm
  • F-2
    18 mm
  • K-1
    22.1 mm
  • L
    24 mm
  • ØDi-1
    1/4 "
  • ØDo-2
    1/2 "

Product description

The Nr. 241 - Reducing bush is a fitting with a tensile strength of < 350N/mm2. The fitting has a male thread x female thread connection with a galvanised surface treatment. The fitting is available in a wide range of sizes.

The Nr. 241 - Reducing bush is made from cast iron.
Read more Read less

Variants

Part number
Packed per
MSQ
Stock
No variants found
Adjust or clear the selected filters to see available variants.
1024101
1/4" x 1/8"
810000
10
1024102
3/8" x 1/8"
810000
10
1024103
3/8" x 1/4"
810000
10
1024104
1/2" x 1/8"
360000
10
1024105
1/2" x 1/4"
360000
10
(2375)
1024106
1/2" x 3/8"
360000
10
(2637)
1024108
3/4" x 1/4"
202500
10
(125)
1024109
3/4" x 3/8"
202500
10
1024110
3/4" x 1/2"
202500
10
(2825)
1024111
1" x 1/4"
57600
10
1024112
1" x 3/8"
57600
10
1024113
1" x 1/2"
57600
10
1024114
1" x 3/4"
57600
10
1024115
1 1/4" x 3/8"
19600
1
1024116
1 1/4" x 1/2"
19600
1
1024117
1 1/4" x 3/4"
19600
1
(922)
1024118
1 1/4" x 1"
19600
10
1024119
1 1/2" x 3/8"
14400
1
(5)
1024120
1 1/2" x 1/2"
14400
1
1024121
1 1/2" x 3/4"
14400
1
1024122
1 1/2" x 1"
14400
1
(1333)
1024123
1 1/2" x 1 1/4"
10000
1
1024124
2" x 1/2"
3600
1
1024125
2" x 3/4"
3600
1
(194)
1024126
2" x 1"
3600
1
1024127
2" x 1 1/4"
3600
1
(1624)
1024128
2" x 1 1/2"
3600
1
1024129
2 1/2" x 1"
1296
1
1024130
2 1/2" x 1 1/4"
1296
1
1024131
2 1/2" x 1 1/2"
1600
1
1024132
2 1/2" x 2"
1600
1
1024133
3" x 1"
576
1
1024134
3" x 1 1/4"
576
1
1024135
3" x 1 1/2"
576
1
1024136
3" x 2"
576
1
1024137
3" x 2 1/2"
576
1
1024141
4" x 2"
144
1
1024138
4" x 2 1/2"
144
1
(50)
1024139
4" x 3"
324
1
7042944
5" x 4"
16
1
7042945
6" x 4"
16
1
