DAB Pressure set PP 1" female thread 7,5bar 4,8A 230VAC green type ESYBOX Mini 3
Product number: 7030935
Manuals & drawings
All prices shown are gross prices. Please log in or contact sales for custom, discounted pricing.
Price excl. VAT
£750.94 / 1 pcs
£750.94 / pcs
Price incl. VAT
£901.13 / 1 pcs
£901.13 / pcs
Out of stock, not expected before 2025-10-06
Frequently bought together
0100302
7021710
7021701
0404957

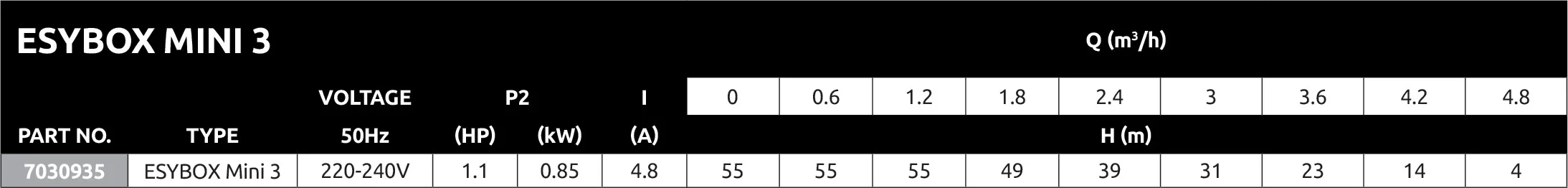

Technical details
-
Size1"
-
Pump bodyPP
-
MWC55
-
MaterialPP
-
Tank1 ltr
-
Material (spring)stainless steel 303
-
Colourgreen
-
Connectionfemale thread
-
Voltage230VAC
-

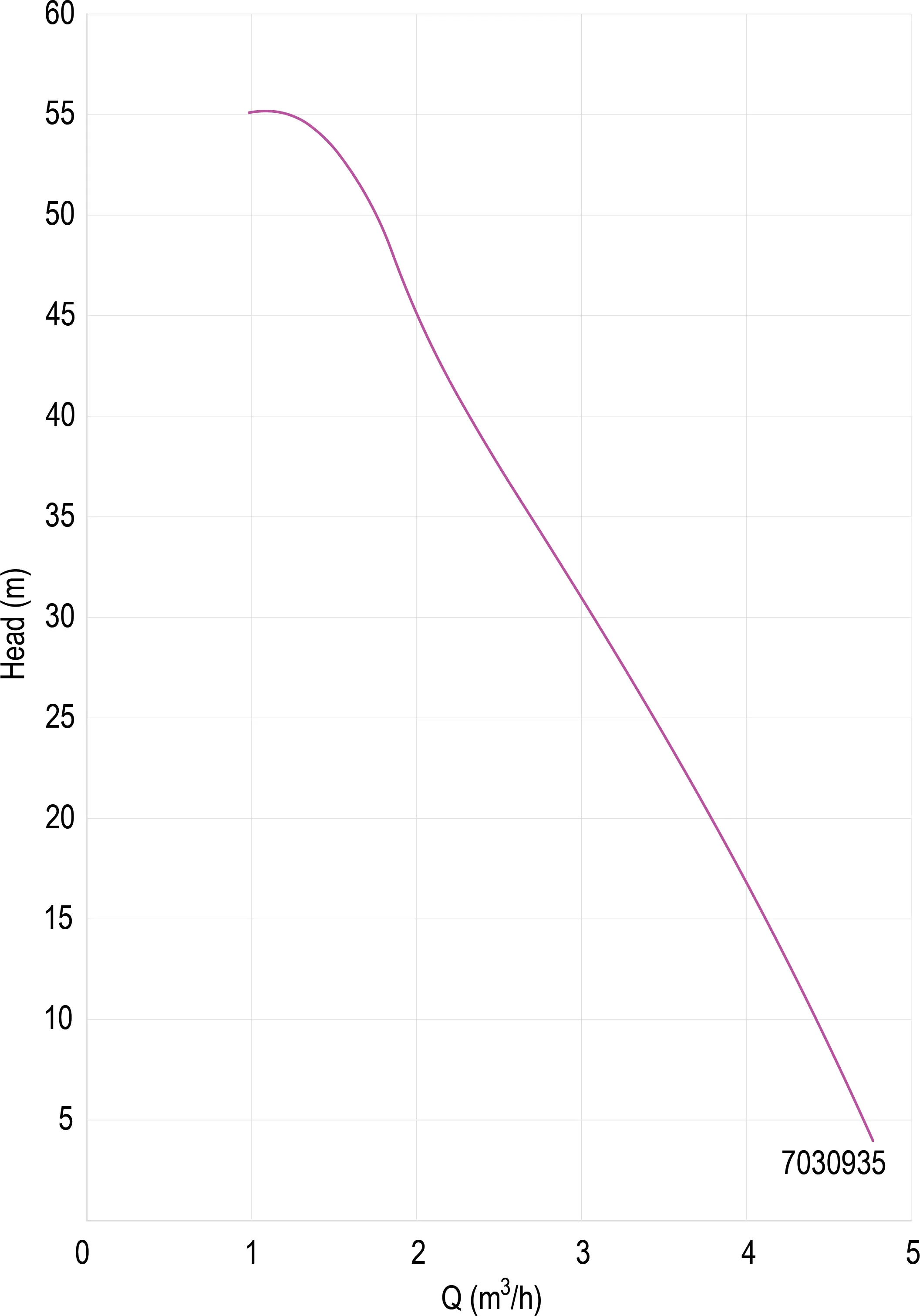

Max flow rate4.8 m³/h
-
Max. temperature40 °C
-
Pressure7,5 bar
-
Frequency50 Hz
-
Ampere4,8 A
-
Impellers3
-
Material impeller 1noryl
-
EAN4019305726993
-
Part number7030935
-
ManufacturerDAB

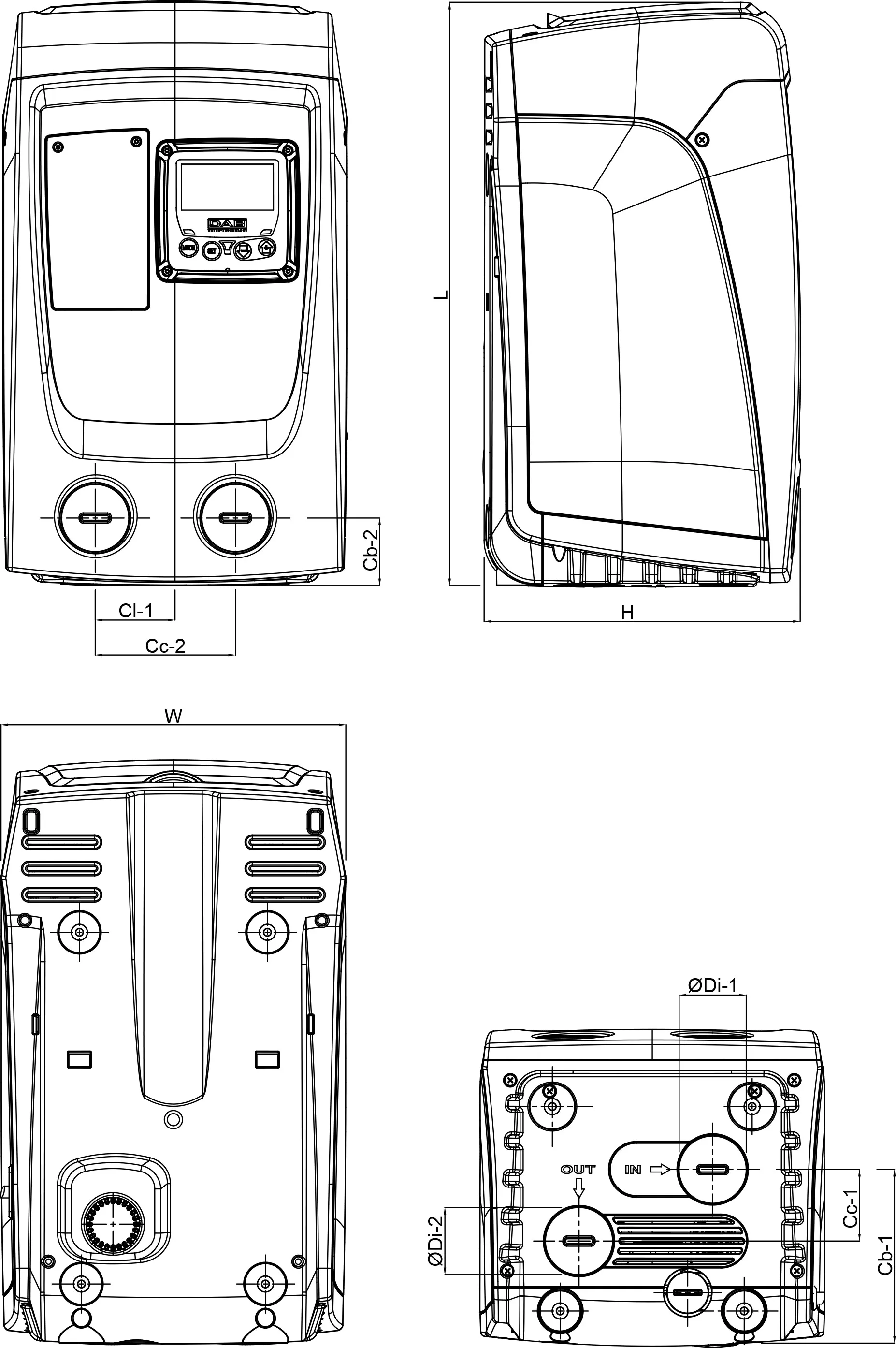

Dimensions
-
Cc-154.5 mm
-
Cc-2106.7 mm
-
Cb-1155.5 mm
-
ØDi-21 "
-
Cl-160.7 mm
-
H236 mm
-
W-1263 mm
-
ØDi-11 "
-
Cb-246 mm
Similar products
DAB Submersible pump technopolymer 1" female thread 4,8A 230VAC black type Eurocover
Subscription
£357.92
Product description
Includes a self-priming multi-stage pump, management inverter electronics, pressure and flow sensors, adjustable high resolution LCD display with 1 litre built-in expansion vessel, and cartridge check valve.
Suitable for use with potable water, in domestic systems and gardening applications.
Pressure Set Point adjustable from 1 up to 5.5 bar
Max. Suction Depth: 8 metres
Installation: Horizontal or vertical fixed position
Suitable for use with potable water, in domestic systems and gardening applications.
Pressure Set Point adjustable from 1 up to 5.5 bar
Max. Suction Depth: 8 metres
Installation: Horizontal or vertical fixed position
